Blog · Jun 25, 2026
Tracer Wire Is Not Just Wire. It Is the Locate Path for Buried Assets
Tracer Wire Is Not Just Wire.
It Is the Locate Path for Buried Assets
For plastic water, gas, sewer, fiber, and irrigation lines, tracer wire is what lets a buried non-metallic utility be found years later. The real product is a system: wire, color logic, waterproof connections, access points, grounding, and continuity testing.
Underground non-metallic utilities keep growing - and every one of them needs to stay locatable.
U.S. infrastructure funding makes tracer wire a long-term follow-on category, not a one-time trend.
As long as buried plastic water, sewer, gas, and fiber networks keep expanding, tracer wire follows. Customers are not buying "cheap wire" - they are buying the ability to locate, not break the line, resist corrosion, connect easily, and pass inspection.
It sells one thing: the locatability of a buried asset.
A line locator energizes the wire and a receiver follows it from the surface. It is not a power conductor and it is not a load circuit. A complete system must solve five problems.
| System Problem | Wire / Component Requirement | What Happens If Done Poorly |
|---|---|---|
| Can the signal travel the whole line? | Adequate conductivity, continuity, correct connectors | Locate breaks; the locator can only guess or dig |
| Will it corrode over years underground? | HDPE/HMWPE/LLDPE insulation, waterproof joints, grounding | Water intrusion, joint corrosion, weak or broken signal |
| Will it pull apart during install? | Break load matched to open cut / HDD / pipe bursting | HDD rework, re-boring, project delays |
| Can a locator connect to it? | Access points, test stations, hydrant/valve-box access | Every locate needs digging or opening a vault |
| Does it pass project acceptance? | APWA color, wire printing, spec sheet, test records | Owner rejects work; contractor reworks |
Professional buyers check standards before price.
Tracer wire for buried utilities should reference locating standards - not be repackaged from ordinary low-voltage control cable.
49 CFR 192.321
Federal background: unencased plastic gas pipe must have a conductive locating means; tracer wire must resist corrosion and must not be wrapped tightly around the pipe. Yellow gas wire is part of utility identification.
ASTM B1010
Core standard for 21% IACS copper-clad steel tracer wire conductor - the reason professional CCS is engineered, not just copper-plated steel.
UL 2989
Tracer Wire Outline covering 30V/600V, 75 degrees C, 18-8 AWG, solid/stranded copper or copper-clad steel for locating water, gas, or fiber lines.
APWA Uniform Color Code
| Color | Typical Use |
|---|---|
| Blue | Potable water |
| Green | Sewer / drain / force main |
| Yellow | Gas / oil / petroleum |
| Orange | Communication / alarm / signal / fiber |
| Red | Electric power |
| Purple | Reclaimed water / irrigation |
| White / Pink | Proposed excavation / temporary survey |
Cities now define tracer wire as a complete system, by installation method.
Real U.S. municipal standards split requirements by open cut, directional drilling, and pipe bursting - each with its own break load and insulation thickness.
| City Standard | Open Cut | HDD / Boring | Pipe Bursting | System Notes |
|---|---|---|---|---|
| Kenosha 2024 | 12 ga copper-clad steel | 7x7 stranded CCS (SoloShot Xtreme or equal) | - | Direct-bury silicone connectors only (no wire nuts), magnesium anodes, access boxes, no splice in HDD run |
| Greeley 2023 | 12 AWG HS-CCS, 450 lb, 30 mil HDPE | 12 AWG EHS-CCS, 1,150 lb, 45 mil HDPE | 7x7 stranded CCS, 4,700 lb, 50 mil HDPE | US-made, APWA color, 5-yr corrosion test, must locate at 512 Hz low frequency |
| Fond du Lac 2025 | 12 AWG (green direct burial) | 10 AWG CCS, 1,150 lb, 45 mil | 7x7 stranded CCS, 4,700 lb, 50 mil | Some cities raise HDD to 10 AWG |
| Minot 2025 | 12 AWG CCS, 450 lb, 30 mil | 12 AWG, 1,150 lb, 45 mil | 7x7 CCS, 4,700 lb, 50 mil | Wire surface must show manufacturer ID & conductor size; specified access points, anodes, marker posts |
Steamboat Springs and others explicitly state THHN wire is not acceptable as tracer wire - nylon/PVC coatings degrade in direct burial.
Open cut, HDD, and pipe bursting are different products - not one spool.
Pull force defines the conductor grade, break load, and insulation thickness. A small copper roll should never be marketed as HDD-rated.

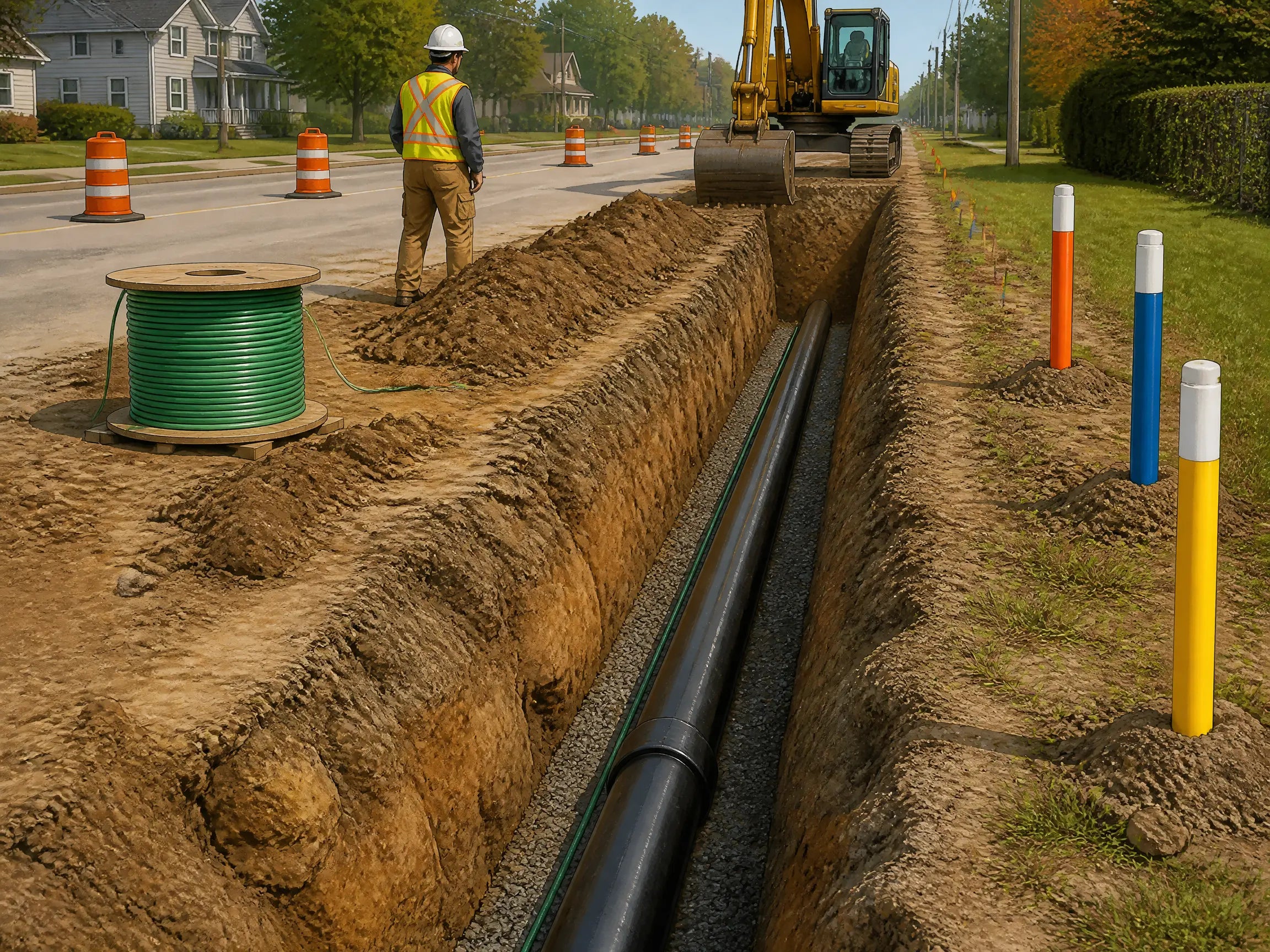

Open Cut / Trenching
Low pull force. Municipal water/sewer/gas mains, campus lines, irrigation mains, residential PE/PEX. Pure copper and HS-CCS both fit.

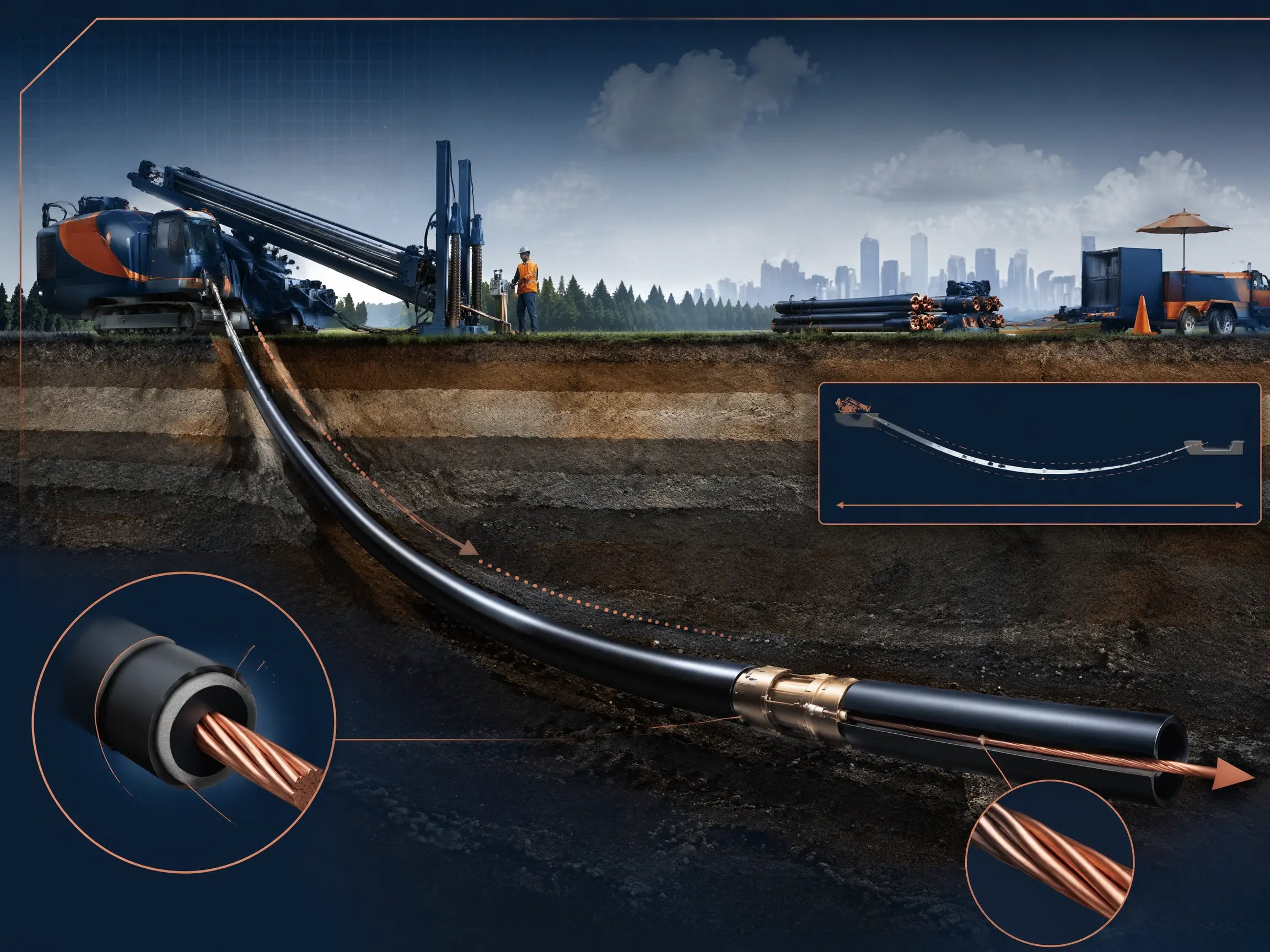

HDD / Directional Boring
Sustained tension and friction. Requires EHS-CCS, thicker insulation, no casual splices, fixed every 5 ft with slack. Sell the value of avoiding a re-bore.

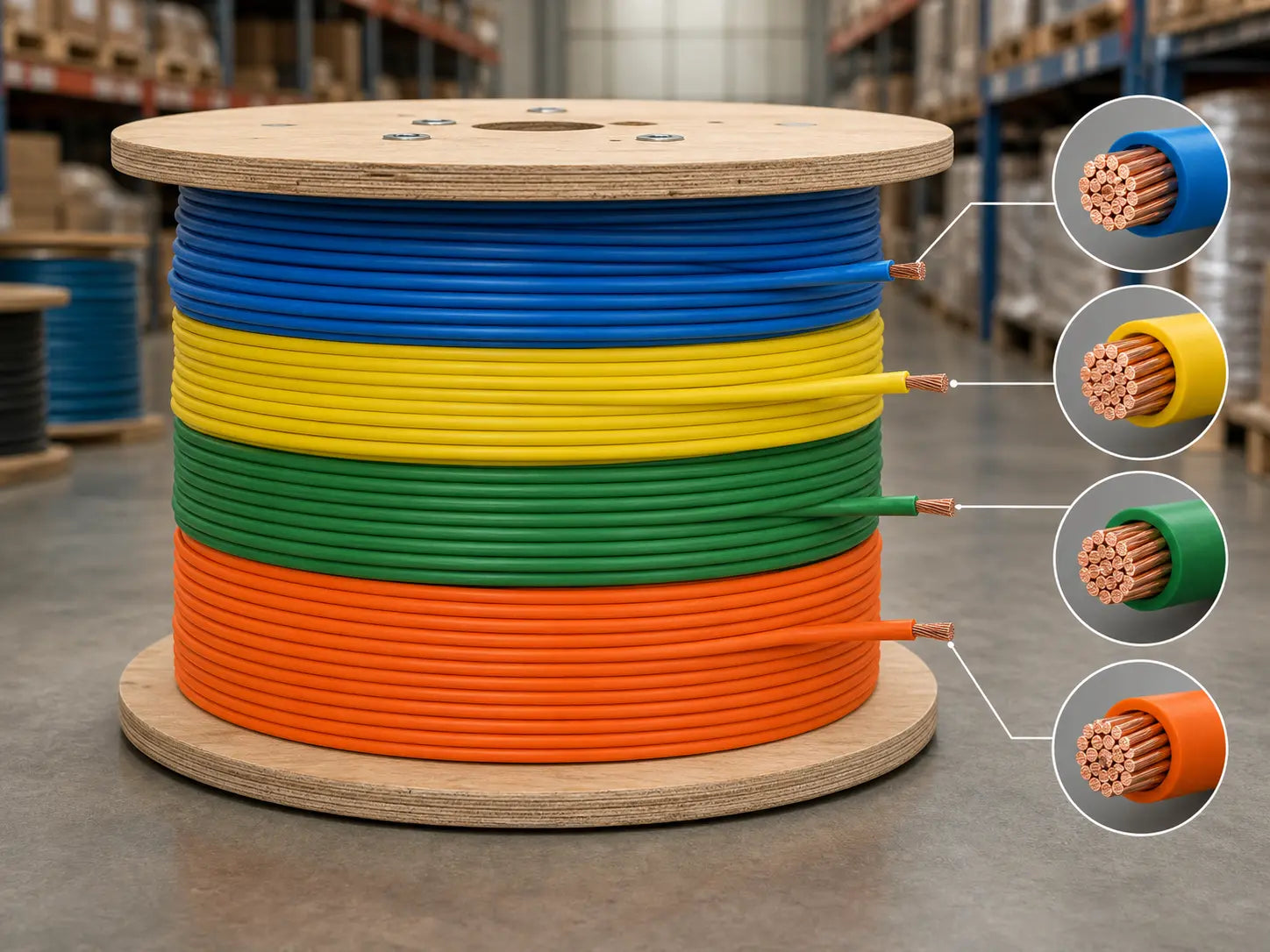

Pipe Bursting / Trenchless
Most demanding. Old pipe breaks, new pipe pulls in. 7x7 stranded CCS or stainless. Project-quote / RFQ product, not an everyday Amazon SKU.
A serious page shows the whole system, not only the spool.
Reddit utility locators repeatedly point to dead-end grounding, missing access, and broken wire as the real failure modes - not the wire price.

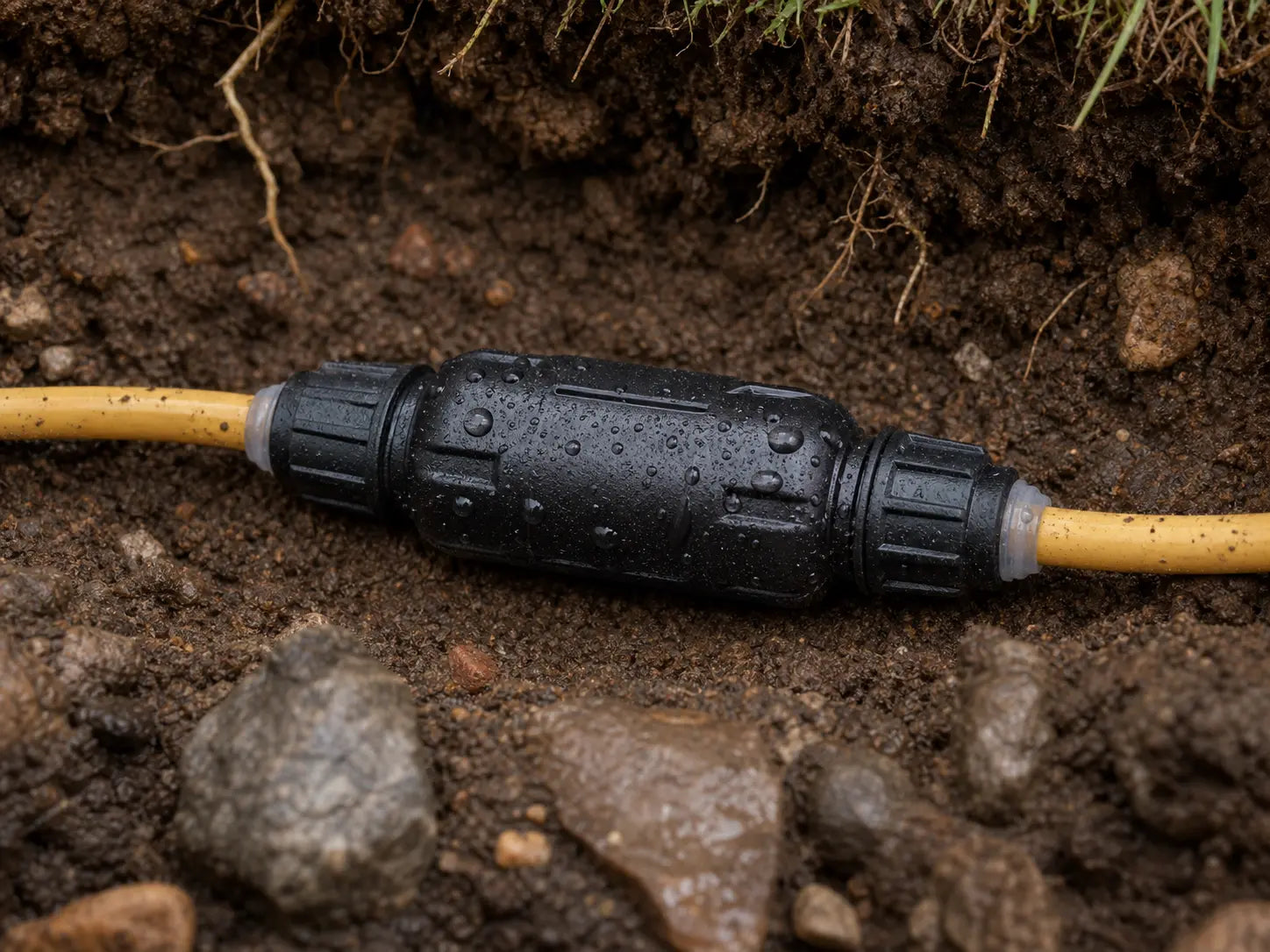

Waterproof Connection
Direct-bury connectors with dielectric silicone protect splices. Wire nuts are not acceptable for formal burial.

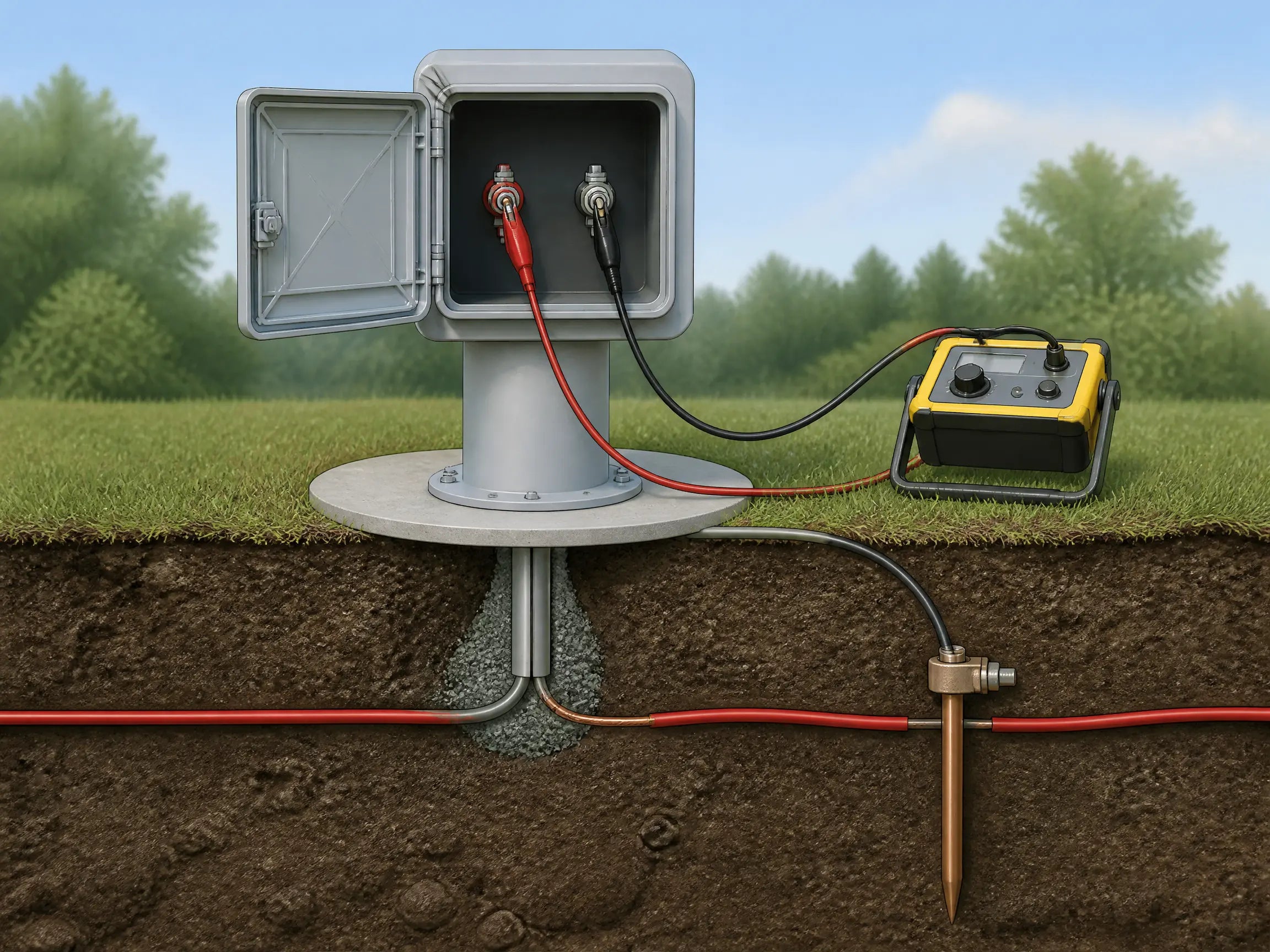

Access Point & Grounding
Test stations + magnesium ground rods let a locator connect without digging and keep the signal clean.

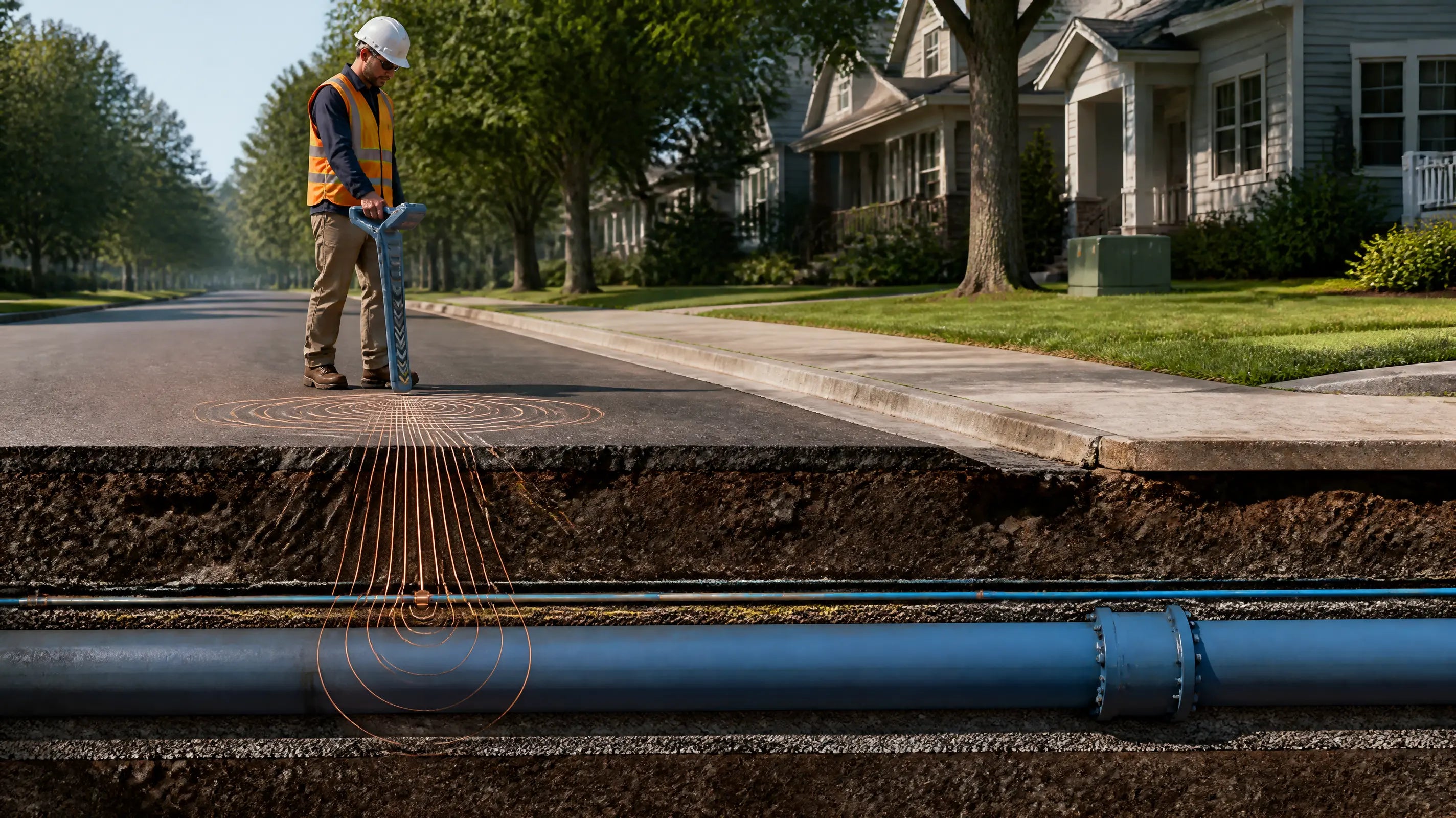

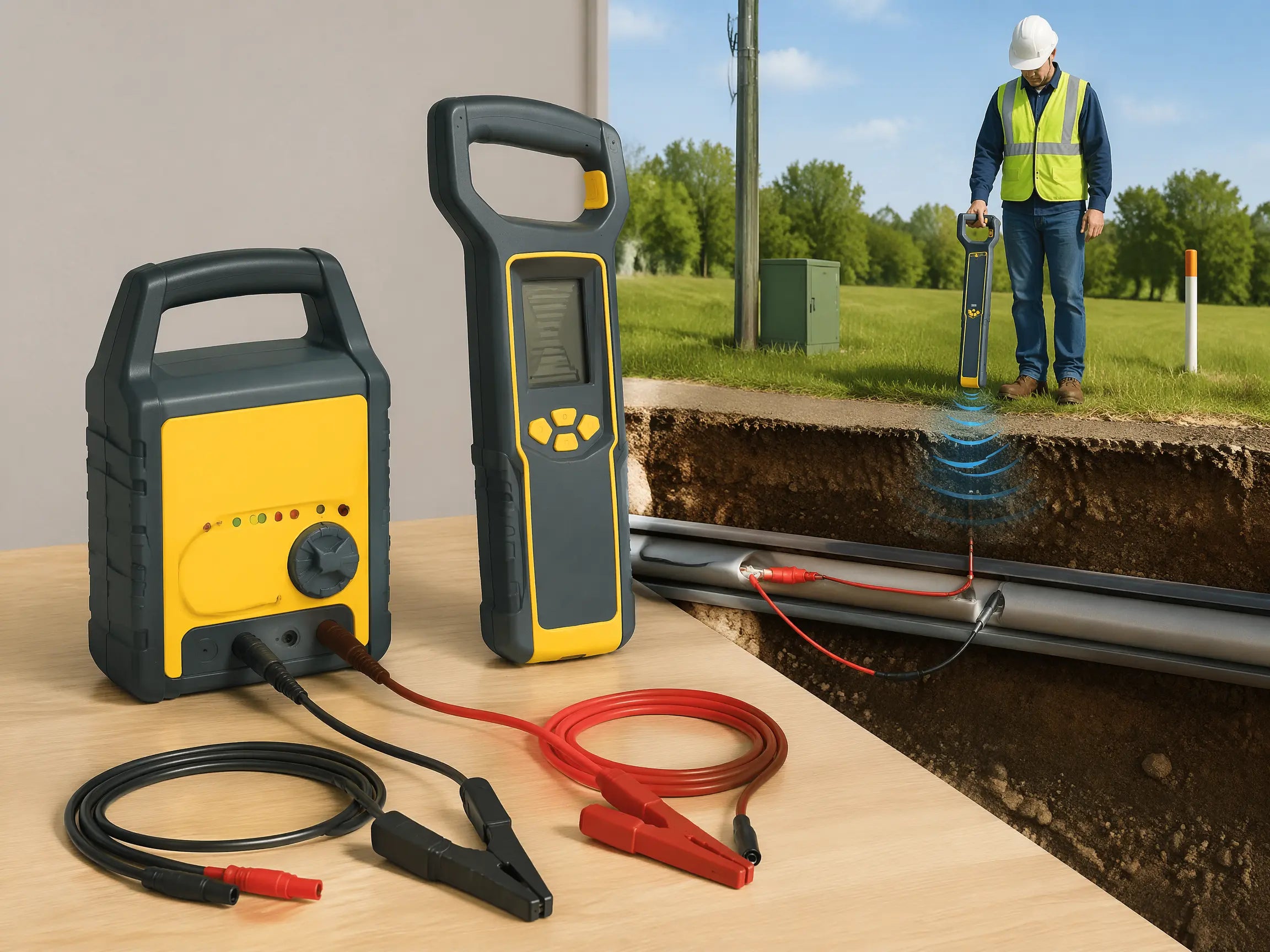

Locator Equipment
Tracer wire is followed with transmitter/receiver gear - never positioned as "detectable by any metal detector."

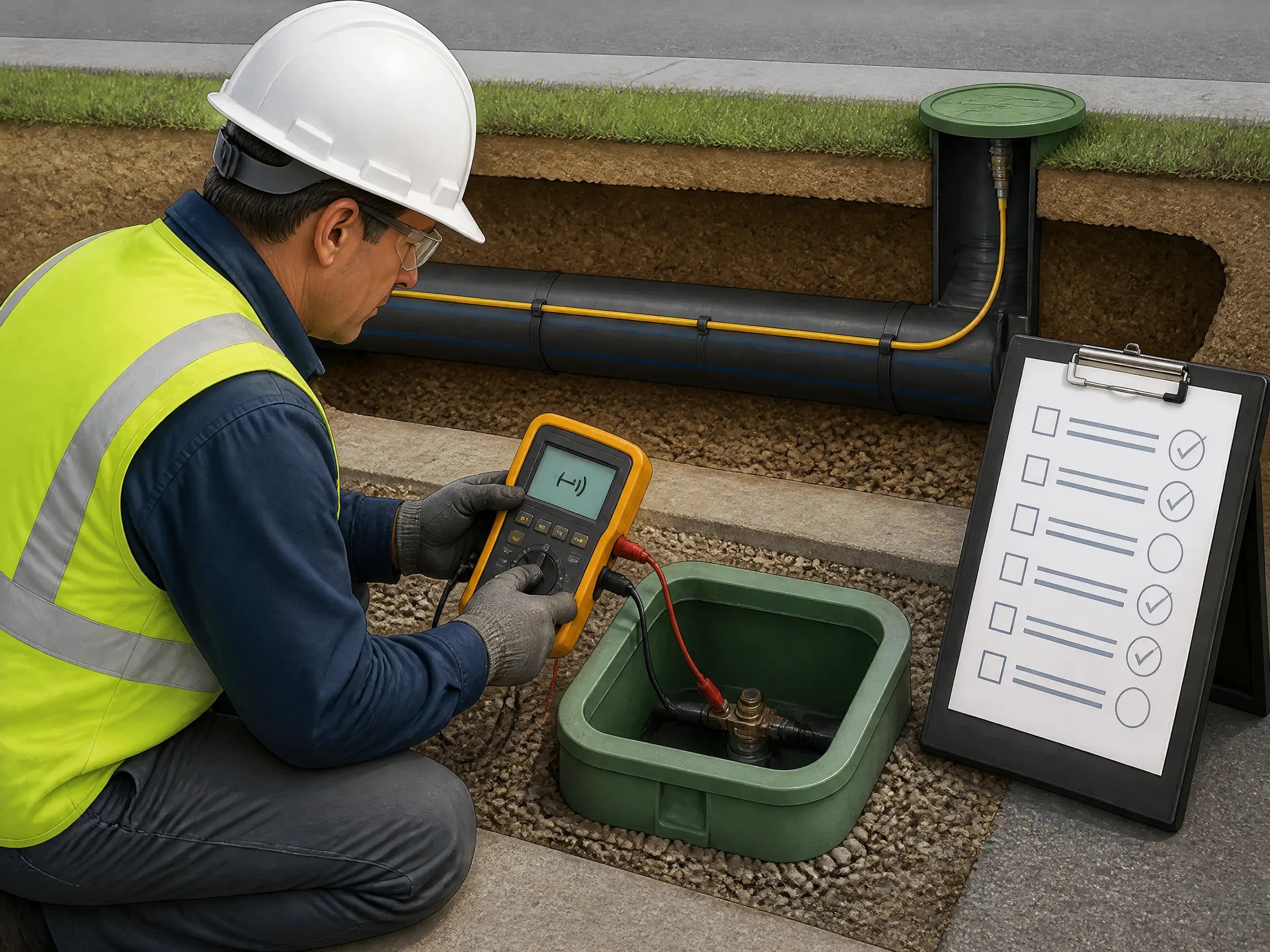

Continuity Test
Verify continuity before backfill to avoid burying an unlocatable asset.
Each APWA color maps to a market and a VOLTIC STONE SKU direction.

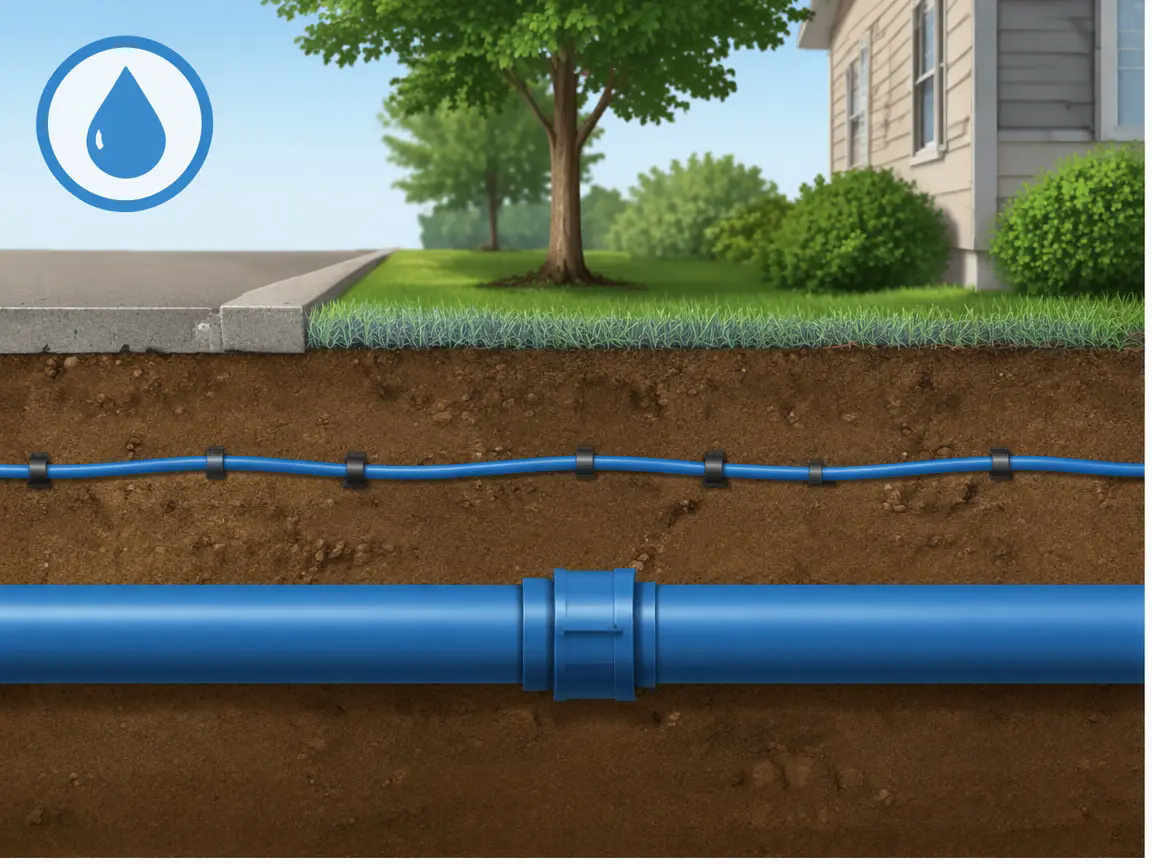

Blue: Water
Largest base. Blue 12 AWG solid copper 45 mil for irrigation and DIY; Blue 12 AWG HS-CCS for municipal open cut; Blue EHS for HDD quotes.

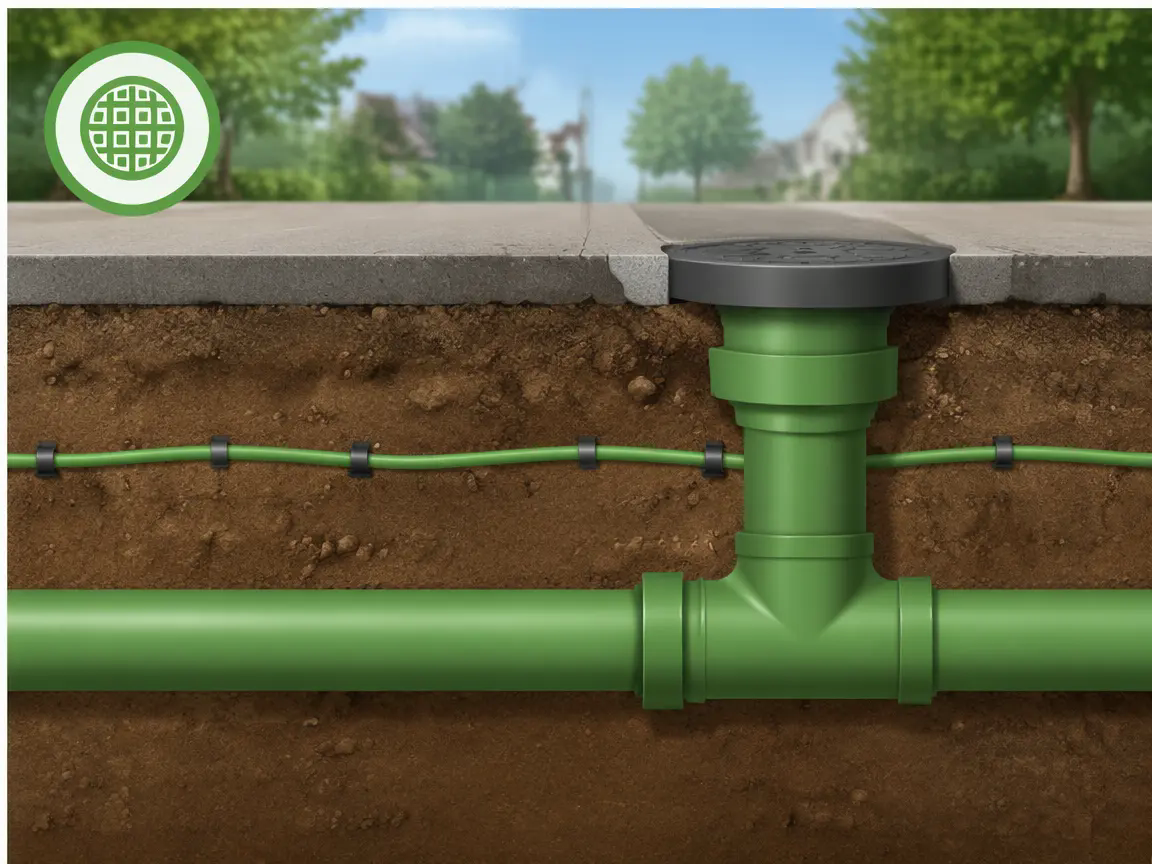

Green: Sewer
Force mains and pipe bursting drive high-strength demand. Green HS-CCS, EHS, and 7x7 extreme-strength systems.

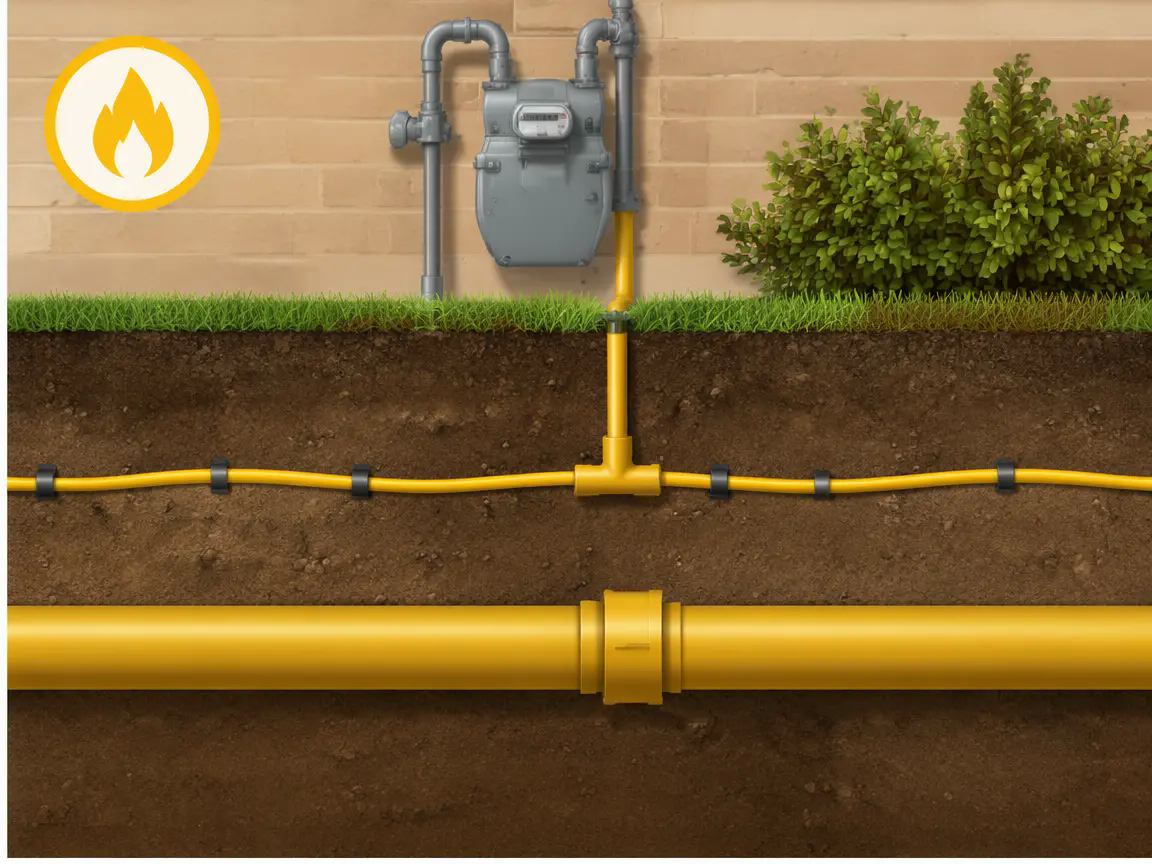

Yellow: Gas
Highest safety stakes under 49 CFR 192.321. Yellow 14 AWG copper fits small jobs; HS/EHS-CCS fits utility and distribution work.

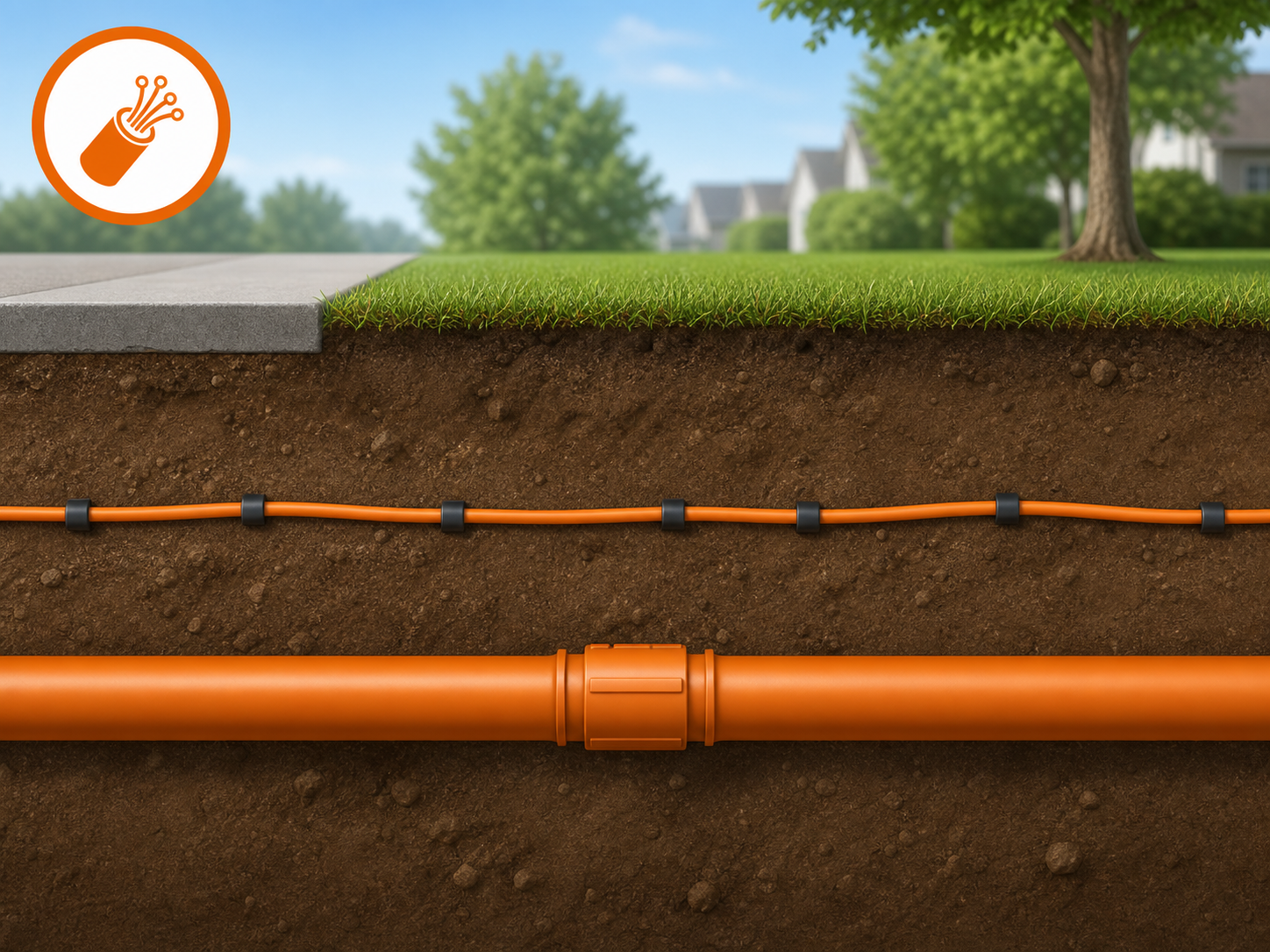

Orange: Fiber
BEAD and FTTH growth. Orange tracer wire supports locatable HDPE conduit, microduct, and fiber communication runs.

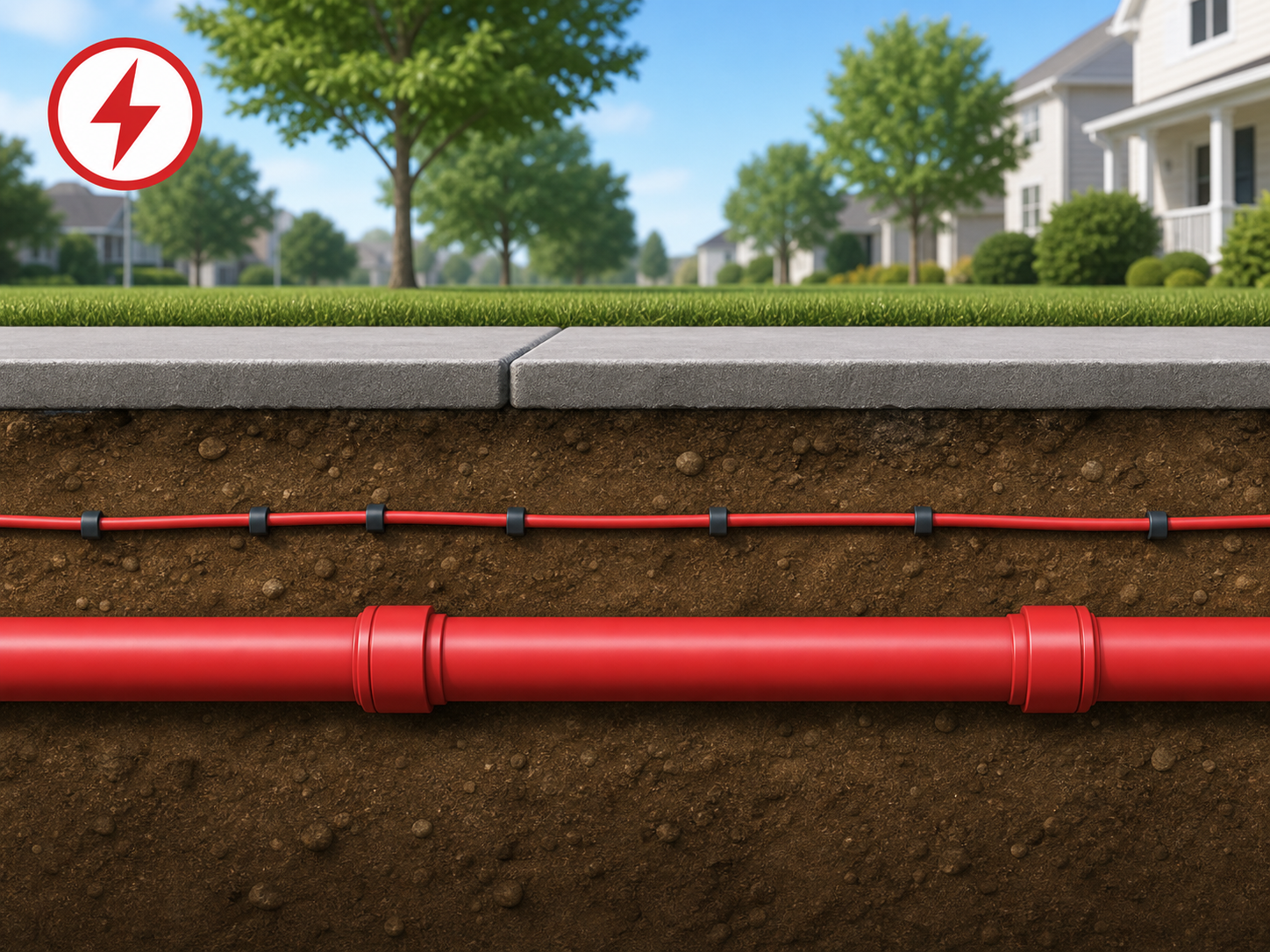

Red: Electric Power
Electric conduit and power-path locating. Red 14 AWG copper supports small electric-conduit locate runs; project specs should control the final wire selection.

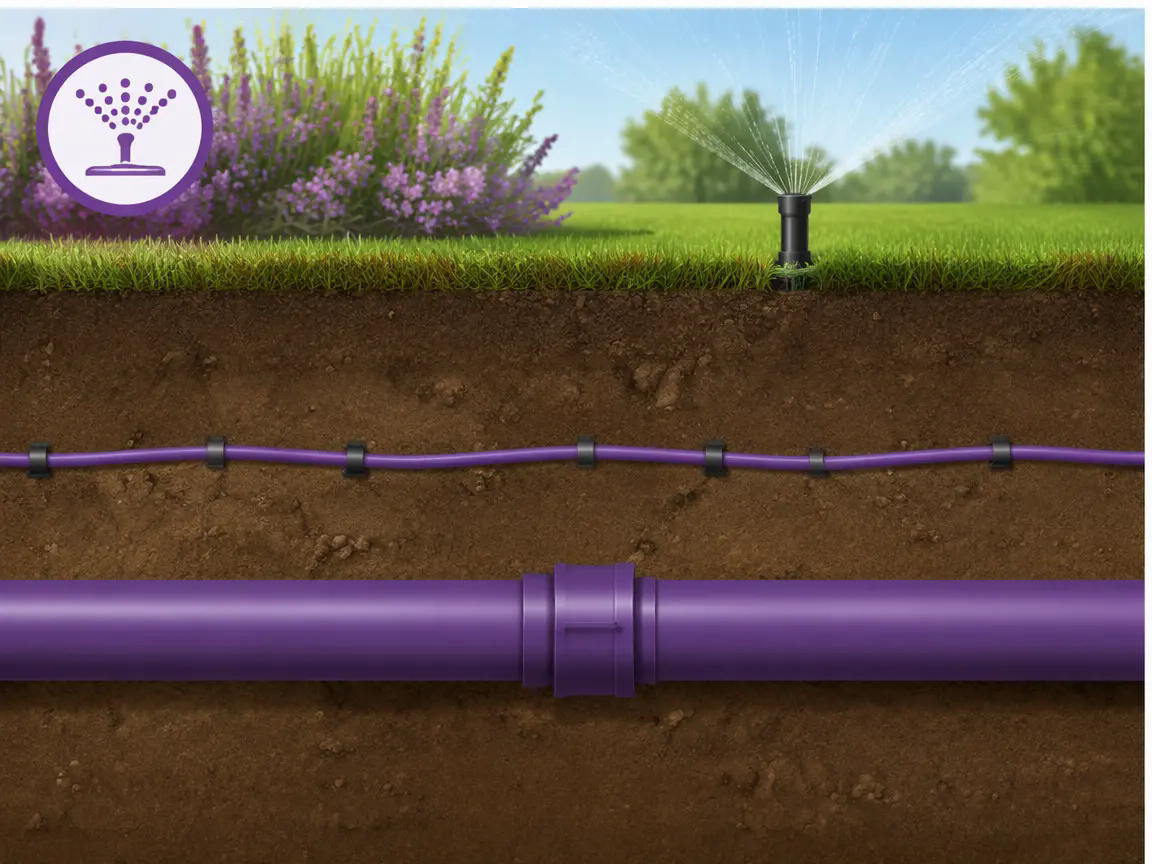

Purple: Irrigation
Reclaimed water, golf, and landscape applications. Purple 12/14 AWG copper small packs pair naturally with landscape wire.
The same category, five very different buyers.
| Buyer Type | Length | Typical Application | What They Care About |
|---|---|---|---|
| DIY homeowner | 50 / 100 / 250 ft | PEX water line, private water main, irrigation, dog fence | Price, easy install, direct burial? |
| Small electrician / plumber | 100 / 250 / 500 ft | Water/gas service lines, repair splices | Color, gauge, spool, fast shipping |
| Irrigation contractor | 500 / 1000 ft | Sprinkler main, golf course, landscape irrigation | Direct burial, water resistance, color |
| Fiber / comms sub-contractor | 500 / 1000 ft | Conduit / fiber locating | Orange, access, abrasion resistance |
| Professional utility contractor | 1000 / 2500 / 5000 ft | Municipal & utility projects | Spec sheet, ASTM/UL, break load, accessories, USA-made |
Competitive landscape: from full systems to Amazon education.
Copperhead leads with a complete locating system written into municipal specs as "or approved equal." VOLTIC STONE needs an equal-comparison sheet, not just a spec table.
| Brand | Positioning | Signature Products | Takeaway for VOLTIC STONE |
|---|---|---|---|
| Copperhead | Complete locating system | SuperFlex (302 lb), High Strength (452 lb), SoloShot EHS (1,150 lb), SoloShot Xtreme (4,700 lb), SnakePit/Cobra access | Prepare an "approved equal" comparison sheet |
| Pro-Trace / Trident | HDD & high-strength detail | HDD-CCS PE45/PE50, 21% IACS, 12 AWG ~1,330 lb, ~700% break load of copper | Make the "avoid re-bore" economics explicit |
| Kris-Tech | Engineering material logic | EHS CCS, 45 mil HDPE, 600V, 6x tensile strength of copper | Frame CCS as "strength for HDD," not "cheap copper substitute" |
| Southwire | Pure copper, UL 2989, channel trust | 12 AWG solid bare copper, 45 mil LLDPE, 600V, UL 2989, ASTM B3 | The benchmark for VOLTIC STONE's pure-copper line |
| Syston | Amazon education | 14 AWG solid copper, 600V, direct burial, small packs | Clarify suitable vs unsuitable uses to cut returns |
A phased SKU ladder from Amazon entry to project-grade systems.
Written as customer education. Apply UL, ETL, ASTM, break-load, or voltage claims only where the actual SKU documentation supports them.
| Phase | SKU Direction | Best Use | Customer Reason |
|---|---|---|---|
| P1 | 14 AWG solid copper, 600V direct burial, Blue/Yellow/Green/Orange, 100/250 ft | DIY & small contractor short/medium runs | Strong signal, intuitive, small-pack purchase |
| P1 | 12 AWG solid copper, UL 2989 target, 600V, 500/1000 ft | Open trench, irrigation, premium pure-copper | Matches VOLTIC STONE "pure copper, true gauge" |
| P1 | 12 AWG HS-CCS, 30 mil, 450 lb | Municipal open cut water/sewer/gas | Meets common 450 lb municipal requirement |
| P2 | 12 / 10 AWG EHS-CCS, 45 mil, 1,150 lb+ | HDD / boring | Reduces broken-wire risk & re-boring cost |
| P3 | 7x7 stranded CCS, 50 mil, 4,700 lb | Pipe bursting / trenchless | Extreme strength, project RFQ |
| P4 | Waterproof connectors, ground rods, access points, detectable tape, locatable HDPE conduit + microduct | System kits & integrated solutions | Becomes a system supplier, not a wire seller |
Integrated solutions are the highest-margin direction

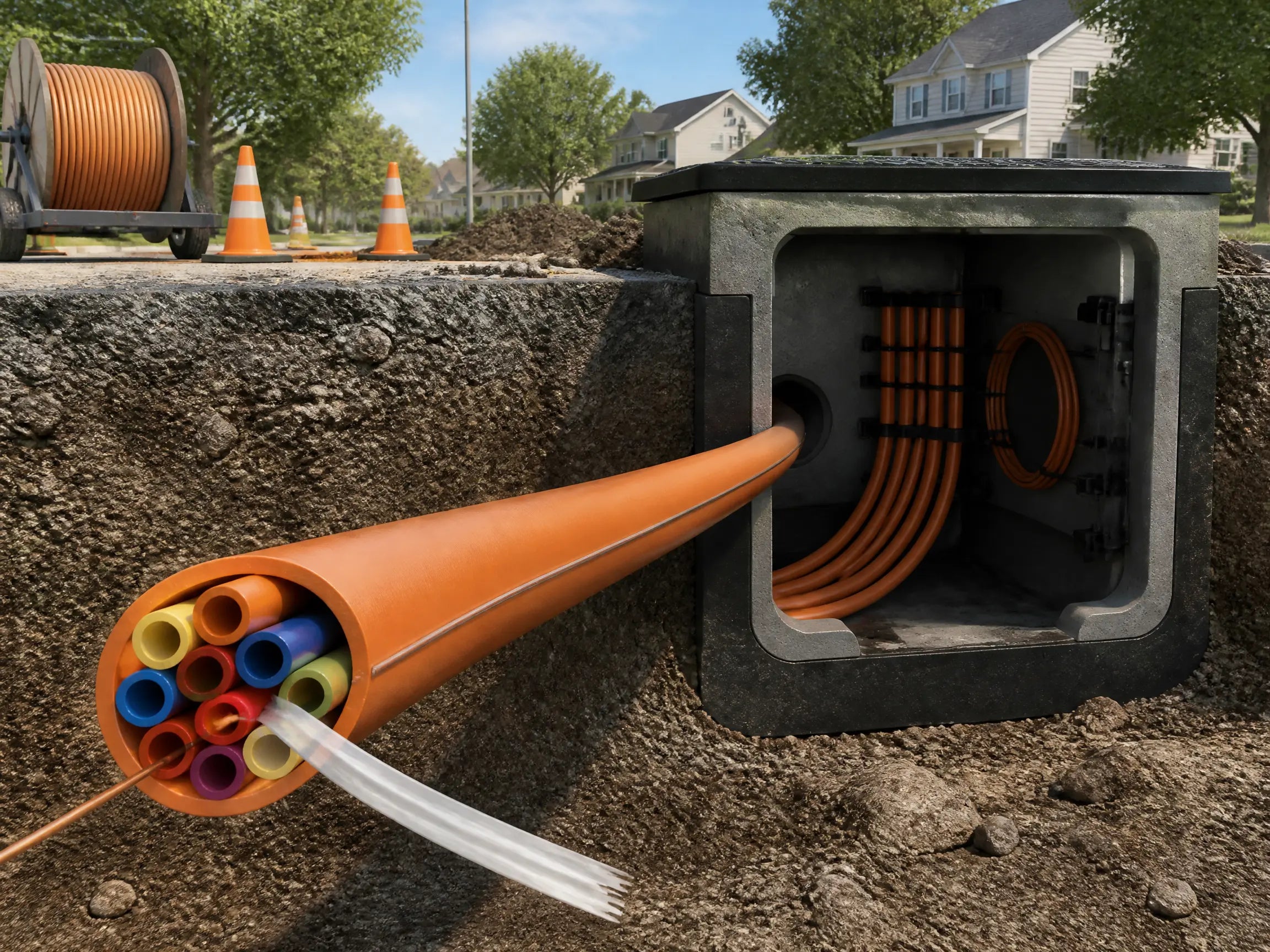

Beyond single wire, the fiber/broadband market favors systems: HDPE conduit with embedded tracer wire, 4-way/7-way microduct with ripcord + 20 AWG tracer wire, and detectable warning tape with built-in tracer wire.
- Tracer wire kit: wire + waterproof connectors + ground rod + access point + APWA labels + install guide
- Locatable HDPE conduit for FTTH and data-center campus routes
- Detectable tape combining visual warning + electronic locate path
Public channel pricing - a range, not a live quote.
| Channel / Product | Spec | Public Price | approx. Unit Price |
|---|---|---|---|
| Wire & Cable Your Way - 12 AWG CCS PE-30 | 500 ft+ | From $118 | approx. $0.236/ft |
| Telecom Specialties - Kris-Tech 12 AWG CCS-SR | 2,500 ft | $357.50 | approx. $0.143/ft |
| SiteOne - Paige 12 AWG copper | 500 ft | $238.50 | approx. $0.477/ft |
| Southwire - 12 AWG solid copper | 500 ft | Pro-channel quote | Typically above CCS |
| Copperhead / Pro-Trace HS/EHS | 500-2,500 ft | Login / quote | By strength & channel |
Public prices are indicative only and do not represent real-time transaction prices. Amazon small packs can carry higher unit price but require better packaging and page education; project reels depend on spec match and lead time.
Sell professionally - avoid claims you cannot back up.
Avoid / Use With Caution
- "Works for all underground utilities"
- "Detectable by any metal detector"
- "HDD rated" on a small copper roll
- "Gas approved" without project/utility approval
- "UL listed" without UL 2989 documentation
- "Fireproof" (tracer wire is not a fire cable)
Say Instead
- "For locating non-metallic utilities where permitted by project requirements"
- "Designed for use with line locator transmitter/receiver equipment"
- Separate open-cut, HDD, and pipe-bursting product tiers
- "For underground locating of nonmetallic gas piping where permitted by local requirements"
- State pure copper, true AWG, direct burial, APWA color, footage marking
- Show insulation thickness and break load by SKU
Top reasons, ranked.
Amazon review-risk points to prevent
Authoritative references for professional buyers.
Questions buyers ask before choosing tracer wire.
Can tracer wire be used as 120V/240V power wire?
No. It is a locating conductor for underground non-metallic utilities, not building power cable.
Does color affect signal performance?
Color doesn't strengthen the signal, but it lets crews and future locators identify the utility type correctly, reducing confusion and jobsite risk per APWA.
Why are waterproof connectors important?
Underground splices face moisture, corrosion, and soil movement. Direct-bury connectors with dielectric silicone help preserve continuity. Municipal specs like Kenosha forbid wire-nut connections.
Can one SKU cover open cut, HDD, and pipe bursting?
Not honestly. Open cut may use 12-14 AWG at ~280-450 lb; HDD needs EHS-CCS at 1,150 lb+ with 45 mil insulation; pipe bursting needs 7x7 stranded CCS at 4,700 lb with 50 mil. Separate the tiers.
Is THHN wire acceptable for tracer wire?
Standards like Steamboat Springs explicitly say THHN is not acceptable - nylon/PVC coatings degrade in direct burial and cause signal failure. Use direct-burial tracer wire with PE/HDPE insulation.
Copper or copper-clad steel - which should I buy?
Pure copper offers strong signal and is intuitive for open cut, irrigation, and DIY. Copper-clad steel (21% IACS, ASTM B1010) is chosen for mechanical strength in HDD and pipe bursting - not as a cheap copper substitute.
Need help matching wire color, gauge, length & installation method?
Send VOLTIC STONE your utility type, project length, installation method, color, and documentation needs. The goal is not just a roll of wire - it's a locate-ready path.
