Dog Fence Wire / Case 2 · Backyard double circuit / Fence fixed

Double Loop Dog Fence

Confirm equipment, route, cable rating, and test points before ordering

Double Loop Dog Fence
Project scenario

What does this solution solve?

Dogs are only expected to be in the backyard and not in the front yard, driveway or side gate. The system can make a U-shaped or rectangular double loop along the backyard fence, or it can fix the boundary line to a wooden fence, chain link fence or existing fence, focusing on the spacing between two parallel lines, channel offset and joint waterproofing. Confirm the equipment and boundaries first, then determine the cable path, recommended wires, wiring key points, construction checks and reference materials to reduce wrong cable selection and callbacks.

Visual Plan Map the system first, then choose the cable

Start with the system layout, then confirm the cable specification. You can check equipment, paths, termination, testing and acceptance issues together before ordering or requesting a quote.

System Layout

Relationship from device to cable path

This diagram shows equipment relationships, cable paths, test points, and maintenance boundaries; actual construction is subject to equipment manuals, local codes, project drawings, and licensed professional judgment.

Backyard Double Loop and Fence-Mounted Dog Fence Wire Installation Plan System Wiring and Construction Logic Diagram
This system diagram shows equipment relationships, cable paths, test points, residential/commercial selection logic, and service boundaries. Actual installation must follow equipment manuals, local code, project drawings, and AHJ requirements.
01 Confirm System Equipment

Fence transmitter, 14 AWG dog fence boundary wire, twisted cancellation section, wood fence / chain link fence mounting clips, waterproof splices, training flags, receiver collar, PVC sleeve, wire locator or continuity tester.

02 Plan the Cable Route

Use a twisted pair offset section from the transmitter to the backyard entrance; once you reach the backyard, one wire runs along the bottom of the fence or inside the ground, and another wire returns along the same path but keeping the spacing, or is fixed separately along the fence top/bottom, and finally back to the transmitter. Use protective pipes or gap paths when crossing gates, driveways or patios, and provide serviceable joints at both ends.

03 Match the Recommended Cable

14 AWG solid copper Dog Fence Boundary Wire suitable for fence fixing, stone soil, surface testing and long-term installation in large yards; the yellow jacket is easy to identify during testing. After being fixed to the fence, clips, UV-rated ties or staples can be used to avoid pulling it too tight.

04 Check Wiring Priorities

Two parallel wires that are too close together will cancel out the signal. If the backyard is too narrow, the route must be redesigned. A full collar test must be performed when it is fixed near a wire grid or metal fence. The joints on both sides of the gate must be waterproof and have a margin for repair. The wire must not be cut by door hinges, lawn mowers, trimmers or vehicle tires. After completion, train the pet segment by segment according to the position of the training flag.

1

How the System Works

The operating logic of the Backyard Double Loop and Fence-Mounted Dog Fence Wire installation solution is: the head-end device provides power, control, communication or supervision, the cable sends the signal to the field device, and finally the closed loop is completed through test points, tags and records. Use a twisted pair offset section from the transmitter to the backyard entrance; once you reach the backyard, one wire goes along the bottom of the fence or inside the ground, and the other wire returns along the same path but keeping the spacing, or along.

2

End-User and Project Selection Logic

End users focus on verifying yard routes, transmitter locations, collar training, driveway crossings and boundary widths; electricians, distributors, supply partners and project teams also verify bus lengths, wire gauge terminations, twisted pair offsets, fence fastenings, waterproof connectors and maintenance records.

3

Installation and Commissioning Logic

The key point of construction is to first draw and mark the property line, driveway, gate, garden, pool, neighbor wire and underground facilities; the wires are first laid on the ground to complete the collar test, and then buried 1-3 inches shallowly. During debugging, conduct continuity/short circuit inspection first, then conduct voltage, voltage drop, communication or functional tests, and record the results.

4

Troubleshooting and Compliance Boundaries

Users can check transmitter loop indicators, collar batteries, boundary flags and visible connectors; when it comes to underground facilities, driveway notches, long-distance outage locating, neighbor system interference or large plots, it should be left to an installer familiar with electronic fences.

System Equipment

Fence transmitter, 14 AWG dog fence boundary wire, twisted cancellation section, wood fence / chain link fence mounting clips, waterproof splices, training flags, receiver collar, PVC sleeve, wire locator or continuity tester.

Cable Route

Use a twisted pair offset section from the transmitter to the backyard entrance; once you reach the backyard, one wire runs along the bottom of the fence or inside the ground, and another wire returns along the same path but keeping the spacing, or is fixed separately along the fence top/bottom, and finally back to the transmitter. Use protective pipes or gap paths when crossing gates, driveways or patios, and provide serviceable joints at both ends.

Recommended Cable

14 AWG solid copper Dog Fence Boundary Wire suitable for fence fixing, stone soil, surface testing and long-term installation in large yards; the yellow jacket is easy to identify during testing. After being fixed to the fence, clips, UV-rated ties or staples can be used to avoid pulling it too tight.

Wiring Notes

Two parallel wires that are too close together will cancel out the signal. If the backyard is too narrow, the route must be redesigned. A full collar test must be performed when it is fixed near a wire grid or metal fence. The joints on both sides of the gate must be waterproof and have a margin for repair. The wire must not be cut by door hinges, lawn mowers, trimmers or vehicle tires. After completion, train the pet segment by segment according to the position of the training flag.

Project Note

Double loop and twisted pair cancellation are not the same thing. A double loop requires the two wires to be spaced far enough apart to form a discernible boundary; the twisted pair segments are used to cancel the signal, allowing dogs to pass safely. The jobsite distance, fence material, door position and transmitter capability are subject to the system manual and test results.

Solution Details

Full Project Context and System Boundaries

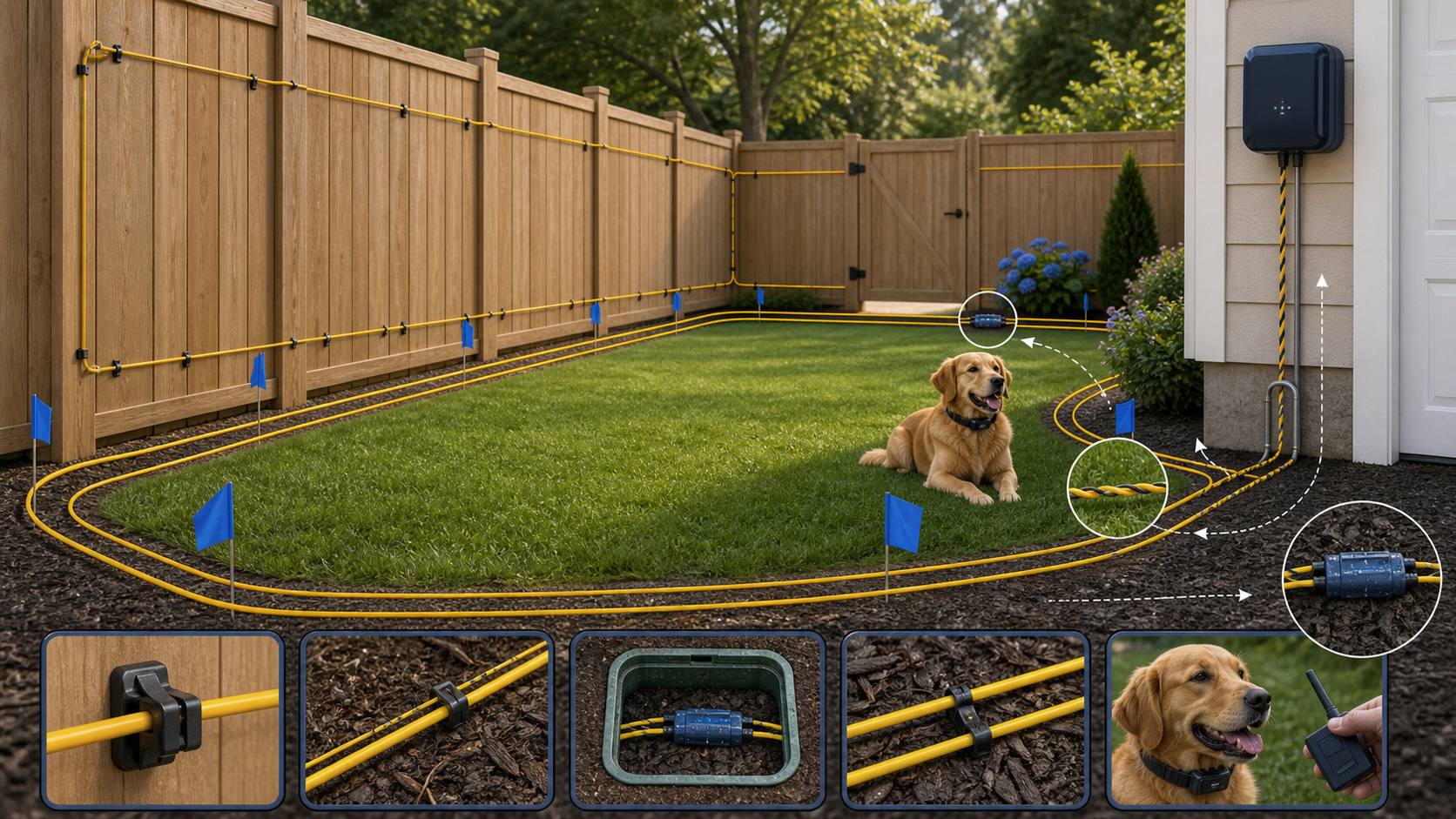

Backyard Double Loop and Fence-Mounted Dog Fence Wire Installation Plan Plan Details Visuals
