Dog Fence Wire / Case 1 · Whole-yard closed loop

Single Loop Dog Fence

Confirm equipment, route, cable rating, and test points before ordering

Return to: Dog Fence Wire electronic fence system wiring plan View VS-DF1401PE-YL-1000 product page

Project scenario

What does this solution solve?

The typical suburban home wants to keep dogs in the front, side and back yards, but doesn't want to build a new physical fence. The system starts from the transmitter in the garage or basement, passes through the twisted pair cancellation section to the yard boundary, forms a complete closed loop along the inside of the property line, and then returns to the transmitter. Confirm the equipment and boundaries first, then determine the cable path, recommended wires, wiring key points, construction checks and reference materials to reduce wrong cable selection and callbacks.

Visual Plan Map the system first, then choose the cable

Start with the system layout, then confirm the cable specification. You can check equipment, paths, termination, testing and acceptance issues together before ordering or requesting a quote.

Code Reference Call 811 before digging Whenever the text discusses listings, cable ratings, or acceptance boundaries, refer to this authoritative source. Manufacturer / Industry Reference PetSafe in-ground fence support When talking about device terminals, system topology or debugging methods in the text, refer to the manufacturer/industry information. Product Page View VS-DF1401PE-YL-1000 product page After reviewing the system logic, open the matching SKU page to confirm wire gauge, color, length, and ordering details. Custom Solutions Submit Project Request When unsure of distance, environment, or listing level, submit device model, photo, length, and purpose.

System Layout

Relationship from device to cable path

This diagram shows equipment relationships, cable paths, test points, and maintenance boundaries; actual construction is subject to equipment manuals, local codes, project drawings, and licensed professional judgment.

Suburban whole-yard Dog Fence Single Loop boundary line installation plan system wiring and construction logic diagram — This system diagram shows equipment relationships, cable paths, test points, residential/commercial selection logic, and service boundaries. Actual installation must follow equipment manuals, local code, project drawings, and AHJ requirements.

01 Confirm System Equipment

Fence transmitter, receiver collar, training flags, 14 AWG solid copper dog fence boundary wire, twisted lead-in wire, waterproof splice kits, PVC sleeve or driveway expansion joint, landscape staples, basic continuity tester.

02 Plan the Cable Route

After exiting the transmitter, two sections of the same circuit are first twisted to form a signal-free channel, which passes through the wall to the yard boundary; then a single boundary wire is routed along the inside of the front yard, side yard, and backyard, bypassing public sidewalks, driveways, gardens, and neighbor areas, and finally returns to the transmitter to form a closed loop.

03 Match the Recommended Cable

14 AWG Dog Fence Boundary Wire, solid bare copper conductor, PE direct burial / UV resistant outdoor jacket, yellow color; 1000 FT fits most 1/2-1 acre homes, 500 FT for small yards or repairs, 2000FT for large lots and long routes.

04 Check Wiring Priorities

First lay the wires on the ground and open the system to test the trigger point of the collar; make rounded corners instead of right-angled fold lines; avoid long distances parallel to underground wires, communication lines or neighbor dog fence wire, and try to make them 90° when they must cross; use waterproof gel-filled splice for all joints; shallow burial is usually controlled to 1-3 inches, and test records are kept.

How the System Works

The operation logic of the Dog Fence Single Loop boundary line installation solution for the whole suburban yard is: the head-end device provides power supply, control, communication or supervision, the cable sends the signal to the field device, and finally the closed loop is completed through test points, labels and records. After the wire comes out from the transmitter, first use two sections of the same circuit to twist to form a signal-free channel, and pass through the wall to the boundary of the yard; then a single boundary wire.

End-User and Project Selection Logic

End users focus on verifying yard routes, transmitter locations, collar training, driveway crossings and boundary widths; electricians, distributors, supply partners and project teams also verify bus lengths, wire gauge terminations, twisted pair offsets, fence fastenings, waterproof connectors and maintenance records.

Installation and Commissioning Logic

The key point of construction is to first draw and mark the property line, driveway, gate, garden, pool, neighbor wire and underground facilities; the wires are first laid on the ground to complete the collar test, and then buried 1-3 inches shallowly. During debugging, conduct continuity/short circuit inspection first, then conduct voltage, voltage drop, communication or functional tests, and record the results.

Troubleshooting and Compliance Boundaries

Users can check transmitter loop indicators, collar batteries, boundary flags and visible connectors; when it comes to underground facilities, driveway notches, long-distance outage locating, neighbor system interference or large plots, it should be left to an installer familiar with electronic fences.

System Equipment

Cable Route

Recommended Cable

Wiring Notes

Project Note

This solution is used for product selection, system understanding and installation communication; actual construction must be based on the transmitter manual, collar training instructions, local excavation rules, property line, HOA requirements and professional judgment. In-ground dog fence systems are not physical barriers and cannot promise 100% containment.

Related Applications

What other similar scenarios is this solution suitable for?

Suburban yards, backyard electric fences, existing timber fence/chain link fence fixings, driveway crossings, twisted pair offset channels, direct buried waterproofing joints and training flag placement.

Solution Details

Full Project Context and System Boundaries

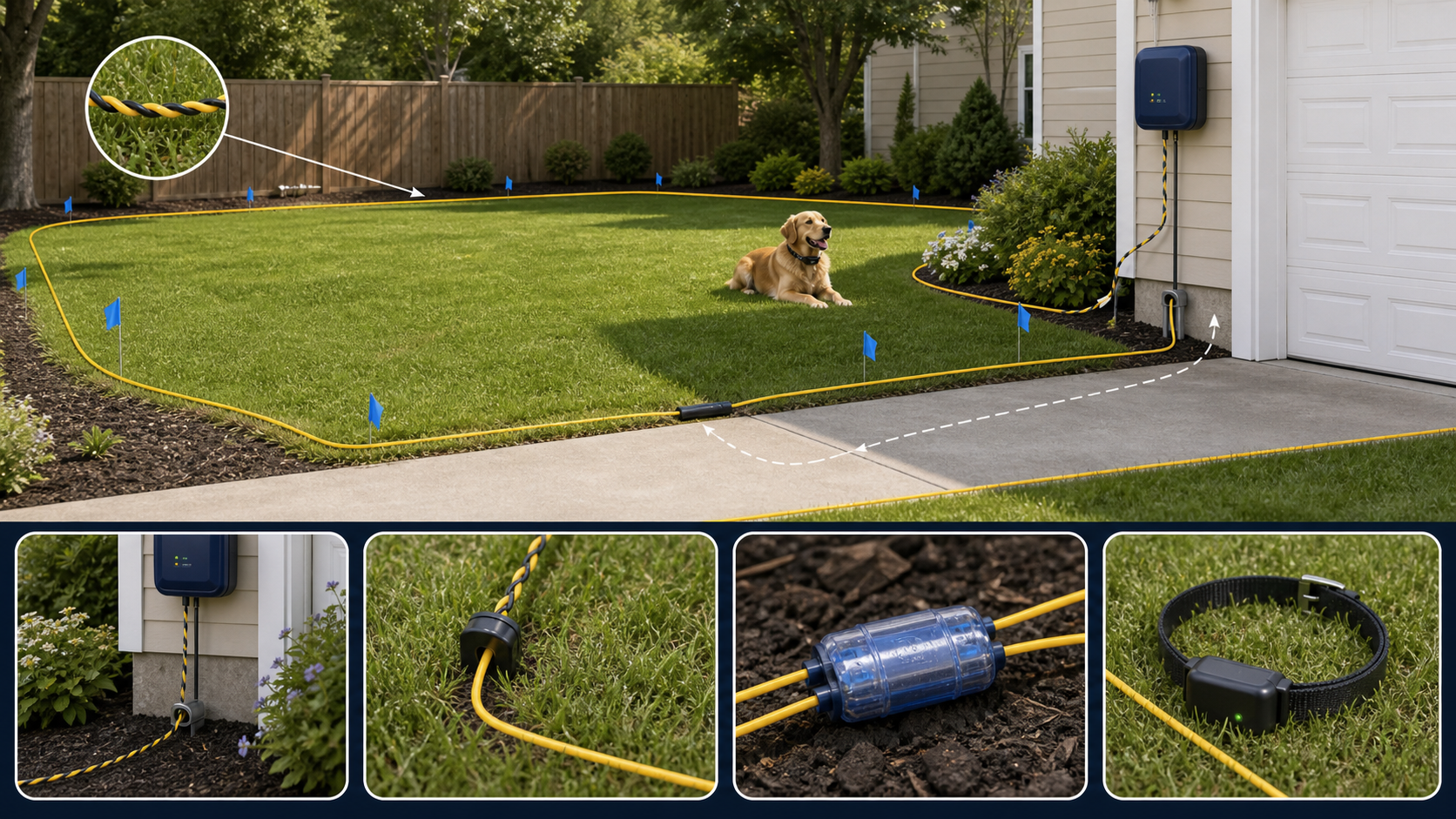

Dog Fence Single Loop Boundary Line Installation Plan for Suburban Whole-Yard Plan Details visual — Display transmitter, yellow boundary wire, twisted lead-in, waterproof connectors, training flags and receiver collar test points with a complete yard view.

**Installation routes and key connectors** Display transmitter, yellow boundary wire, twisted lead-in, waterproof connectors, training flags and receiver collar test points with a complete yard view.

**System Relationship Diagram** Put field devices, cable paths, recommended wires, and maintenance points into the same visual to understand the system before proceeding to selection.

**Define the System Boundary** Put the fence transmitter, receiver collar, training flags, 14 AWG solid copper dog fence wire into the same relationship diagram, first confirm the equipment, and then confirm the wire.

Confirm the cable specification, installation path, product documents, and local codes before ordering or installation.

System Diagram

Visual Guide from Equipment to Cable Route

**System Connection Diagram** Use diagrams to first identify head-end devices, field devices, cable paths, test points, and maintenance boundaries.

**Field Route Mapped to Diagram Nodes** After the wires come out from the transmitter, two sections of the same circuit are first twisted to form a signal-free channel, which passes through the wall to the boundary of the yard; then a single boundary wire is routed along the inside of the front yard, side yard, and backyard to bypass the public.

**Service Points and Risk Boundaries** Each line should be able to explain the starting point, end point, purpose, specifications, termination method and post-inspection location.

Confirm the cable specification, installation path, product documents, and local codes before ordering or installation.

Cable Selection

Select cable by specification, environment and risk

Cable and Product Entry Check first when selecting 14 AWG Dog Fence Boundary Wire, solid bare copper conductor, PE direct burial / UV.

**Route Drives the Spec** Wire gauge, conductor count, jacket rating, shielding structure and color must be determined along with the system path.

**Verify the Install Environment** In-wall, ceiling, outdoor, underground, and wet-location, equipment boxes and commercial spaces have different wire requirements.

Confirm the cable specification, installation path, product documents, and local codes before ordering or installation.

Installation Checklist

Start-up, termination, testing and delivery verification

Suburban whole-yard Dog Fence Single Loop boundary line installation plan construction verification visual — Take photos, mark, cut off power, and check terminals before starting work; keep test records and cable paths after completion.

**Before and After Installation** Take photos, mark, cut off power, and check terminals before starting work; keep test records and cable paths after completion.

**Test Against the System Diagram** Continuity, short circuit, voltage, voltage drop, communication, function and recording are completed one by one according to the path.

**Turnover and Long-Term Service** Save device models, cable numbers, connector locations, test results and repurchase specifications to reduce subsequent callbacks.

Confirm the cable specification, installation path, product documents, and local codes before ordering or installation.

Reference

References and professional information

Use these references to check code context, equipment requirements, cable selection, and installation decisions. For inspected commercial work, fire alarm, underground utility, public works, or line-voltage boundaries, follow local code, manufacturer documentation, AHJ direction, and licensed professionals.

Need further confirmation?

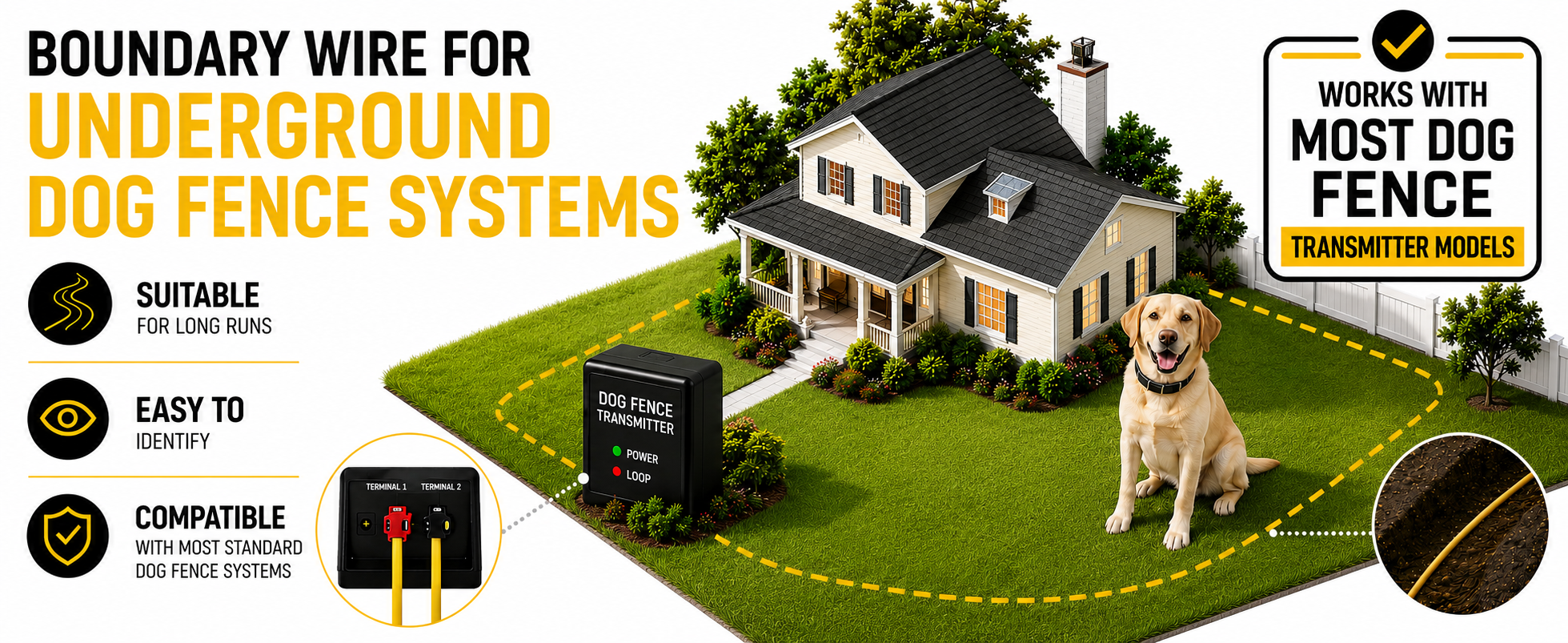

Tell us the project scene, length, color and quantity
