Fire Alarm Cable / FPLP / FPLR / Case 1 · Addressable SLC

Addressable SLC Device Loop

Confirm equipment, route, cable rating, and test points before ordering

Addressable SLC Device Loop
Project scenario

What does this solution solve?

SLC is the communication/power supply loop between FACP and address detectors, modules, manual alarms and other equipment. The system goal is to ensure device addressing, supervision and communication stability. Confirm the equipment and boundaries first, then determine the cable path, recommended wires, wiring key points, construction checks and reference materials to reduce wrong cable selection and callbacks.

Visual Plan Map the system first, then choose the cable

Start with the system layout, then confirm the cable specification. You can check equipment, paths, termination, testing and acceptance issues together before ordering or requesting a quote.

System Layout

Relationship from device to cable path

This diagram shows equipment relationships, cable paths, test points, and maintenance boundaries; actual construction is subject to equipment manuals, local codes, project drawings, and licensed professional judgment.

Addressed SLC Class B / Style 4 equipment circuit system wiring and construction logic diagram
This system diagram shows equipment relationships, cable paths, test points, residential/commercial selection logic, and service boundaries. Actual installation must follow equipment manuals, local code, project drawings, and AHJ requirements.
01 Confirm System Equipment

FACP, addressable smoke/heat detector, pull station, monitor module, control module, isolator module, junction box.

02 Plan the Cable Route

Starting from the SLC terminals of the FACP, go to the address-based device or module; Class B usually does not return to the panel, and Class A requires a loop return.

03 Match the Recommended Cable

18/2 FPLR or FPLP fire alarm cable as a common entrance; whether shielded depends on the panel manufacturer and project drawings; plenum/riser depends on the installation space.

04 Check Wiring Priorities

SLC is not equal to standard 24V power cord; polarity, shielding, isolation module, device quantity and distance restrictions are as per FACP manual.

1

How the System Works

The operating logic of the addressed SLC Class B / Style 4 equipment loop is: the head-end device provides power, control, communication or supervision, the cable sends the signal to the field device, and finally the closed loop is completed through test points, labels and records. Starting from the SLC terminals of the FACP, go to the address-based device or module; Class B usually does not return to the panel, and Class A requires a loop return.

2

End-User and Project Selection Logic

Basic scenario content is used to understand fire alarm system boundaries; life safety projects must be performed by professionals in accordance with FACP Manual, NFPA/NEC, UL 1424, drawings, and AHJ requirements.

3

Installation and Commissioning Logic

Construction focuses on loop type identification, EOL location, polarity, shield termination, open and short circuit supervision, equipment address, voltage drop calculation, battery calculation, loop identification, as-built drawings and AHJ acceptance information. When debugging, conduct continuity/short circuit check first, then conduct voltage, voltage drop, communication or functional tests, and record the results.

4

Troubleshooting and Compliance Boundaries

Non-professional users are only suitable for viewing panel status and recording error reports; fire alarm loops, EOL, NAC, SLC, Class A/B, shielding and acceptance must be handled by qualified personnel.

System Equipment

FACP, addressable smoke/heat detector, pull station, monitor module, control module, isolator module, junction box.

Cable Route

Starting from the SLC terminals of the FACP, go to the address-based device or module; Class B usually does not return to the panel, and Class A requires a loop return.

Recommended Cable

18/2 FPLR or FPLP fire alarm cable as a common entrance; whether shielded depends on the panel manufacturer and project drawings; plenum/riser depends on the installation space.

Wiring Notes

SLC is not equal to standard 24V power cord; polarity, shielding, isolation module, device quantity and distance restrictions are as per FACP manual.

Project Note

This guide supports product selection and project communication. It does not replace NEC/NFPA requirements, manufacturer manuals, project drawings, AHJ direction, or licensed electrician/contractor judgment. Always verify jacket markings, listing documents, equipment terminals, and local requirements before installation.

Solution Details

Full Project Context and System Boundaries

Address type SLC Class B / Style 4 equipment circuit Solution details Visuals
Put field devices, cable paths, recommended wires, and maintenance points into the same visual to understand the system before proceeding to selection.
System Relationship Diagram
System Relationship Diagram Put field devices, cable paths, recommended wires, and maintenance points into the same visual to understand the system before proceeding to selection.

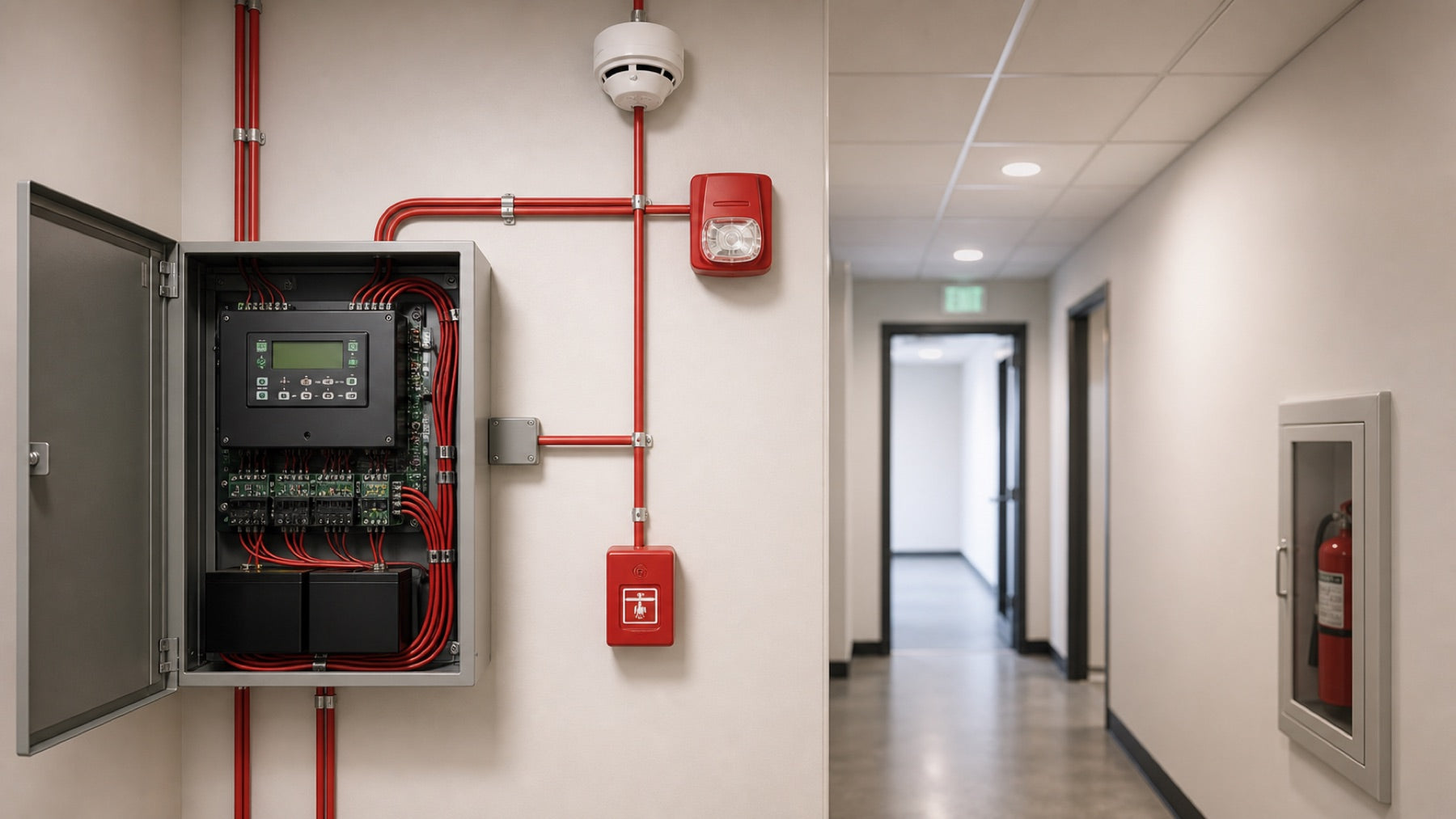

Jobjobsite and Cable Route
Jobjobsite and Cable Route SLC is the communication/power supply loop between FACP and address detectors, modules, manual alarms and other equipment. The system goal is to ensure device addressing, supervision and communication stability.
Define the System Boundary
Define the System Boundary Put FACP, addressable smoke/heat detector, pull station, monitor module, control. into the same relationship diagram, first confirm the equipment, and then confirm the wires.
Confirm the cable specification, installation path, product documents, and local codes before ordering or installation.
System Diagram

Visual Guide from Equipment to Cable Route

Address type SLC Class B / Style 4 equipment circuit system diagram accompanying visuals
Use diagrams to first identify head-end devices, field devices, cable paths, test points, and maintenance boundaries.
System Connection Diagram
System Connection Diagram Use diagrams to first identify head-end devices, field devices, cable paths, test points, and maintenance boundaries.
Field Route Mapped to Diagram Nodes
Field Route Mapped to Diagram Nodes Starting from the SLC terminals of the FACP, go to the address-based device or module; Class B usually does not return to the panel, and Class A requires a loop return.
Service Points and Risk Boundaries
Service Points and Risk Boundaries Each line should be able to explain the starting point, end point, purpose, specifications, termination method and post-inspection location.
Confirm the cable specification, installation path, product documents, and local codes before ordering or installation.
Cable Selection

Select cable by specification, environment and risk

Address type SLC Class B / Style 4 equipment circuit cable selection drawings
When selecting, check 18/2 FPLR or FPLP fire alarm cable as the common entrance; whether shielded depends on the panel manufacturer and project drawings; plenum/riser depends on the installation space.
Cable and Product Entry
Cable and Product Entry When selecting, check 18/2 FPLR or FPLP fire alarm cable as the common entrance; whether shielded depends on the panel manufacturer and project drawings; plenum/riser depends on the installation space.
Route Drives the Spec
Route Drives the Spec Wire gauge, conductor count, jacket rating, shielding structure and color must be determined along with the system path.
Verify the Install Environment
Verify the Install Environment In-wall, ceiling, outdoor, underground, and wet-location, equipment boxes and commercial spaces have different wire requirements.
1. Overview of recommended wires
This case recommends: 18/2 FPLR or FPLP fire alarm cable as the common entrance; whether shielded depends on the panel manufacturer and project drawings; plenum/riser depends on the installation space. Selection should also consider the number of devices, path distance, voltage/signal, installation environment, future expansion and compliance boundaries. 18/2 FPLR/FPLP are common inlet specifications; IDC or SLC Whether 18/4, shielded, plenum/riser is needed depends on the panel and drawings; NAC needs to select 18/2, 16/2 or 14/2 according to current, distance and voltage drop. Green conductors, drain wires and shields do not define themselves as ground by color. 2. Specification selection table
- 18/2 FPLR/FPLP: Common SLC, IDC or short-distance loop entrance, need to be confirmed by project. - 18/4: For some Class A, spare conductor or special connection scenarios, please refer to the panel manual. - 16/2 or 14/2 FPLR/FPLP: NAC Evaluated for long distances, multiple strobes, or larger currents. - Shielded fire alarm cable: Use only when required by the manufacturer or project, and drain processing must be clear. - FPL, FPLR, FPLP must be consistent with the real cable jacket, certificate and installation environment. 3. Conductor and conductor count logic
The brand advantage of VOLTIC STONE is that it uses pure copper conductors and does not reduce specifications. The value of true-gauge copper is not a marketing slogan, but more stable termination, more controllable voltage drop, more consistent wire drawing and stripping experience, and easier jacket markings and specifications easier to verify by project personnel. More conductors are not necessarily more professional, but insufficient conductors will definitely lead to callbacks. When selecting, you should first list all the terminals required by the current equipment, plus at least one or two for future spares. Professional projects should also be reserved according to the drawings. 4. Jacket rating and installation space
The same wire gauge may require different jackets and listing levels in different spaces. The requirements are different for ordinary wall, riser, plenum, outdoor, wet area, direct burial, underground pipes, mechanical space, and ceiling return air space. Don't just look at the AWG and conductor count, but also check whether the cable jacket identification, packaging label, datasheet, listing document and installation environment are consistent. 5. Colors and labels
Color is an aid, not the specification itself. Low-voltage cables commonly use red, white, green, yellow, blue, brown, black, orange, purple and other colors to help terminal identification; The color of the tracer wire is often used to assist in identifying underground facilities according to APWA customs; the lighting dimming line is often purple/gray or purple/pink for identification; the fire alarm cable is often sheathed in red. However, wiring cannot be based solely on color during construction, but must be based on terminal markings, drawings and equipment manuals. 6. Length and packaging recommendations
End users often focus on lengths such as 50ft, 100ft, 250ft that are easy to purchase and handle; electricians, contractors and distributors, supply partners are more concerned about 500ft, 1000ft, reel packaging, sequential length markings, jacket marking, batch numbers and outer box labels. When purchasing, a reasonable margin should be added based on the actual path, and the color, length, and use should be recorded on the project label. 7. It is not recommended to choose this way
- Do not substitute regular indoor wire for wire requiring direct burial, wet location, UV or plenum/riser. - Do not use low-voltage control wires for 120V or other line voltage supplies. - Do not write security cable as fire alarm cable unless the actual cable jacket marking and certificate clearly support it. - Do not promote ordinary multi-conductor cable as OSDP/RS-485 dedicated cable unless there are truly shielded twisted pairs and appropriate construction. - Do not mistake Sprinkler Wire for Tracer Wire, and do not mistake Tracer Wire for valve control wire. - Do not write strong promises such as UL Listed, FPLP, CMP, HDD rated, OSDP certified, etc. without a certificate. 8. Product verification before placing an order
After entering the corresponding Product Line, first check the wire gauge / conductor count, color, length, jacket rating, shielding structure, cable jacket identification and packaging information. Understand the system first, then choose wire gauge, color, length and quantity; if the project conditions are uncertain, you can submit photos of the equipment, distance, environment and usage for confirmation. 9. Turn selection into purchasing decision
Product collections, single products, specification sheets, FAQs, contact us and solution customization forms need to be connected to each other. After understanding the system logic, you can enter the product page to select the color and length; if you are not sure, enter the solution customization form to submit the device photo, distance and usage. This can reduce the cost of mispurchases, returns, callbacks and later inspections. 10. Order review list
- Verify that the AWG, conductor count, color, and jacket rating in the product title match the actual item. - Confirm that there is enough margin in length. Do not buy based on straight-line distance only for long distances or multi-turn paths. - Confirm whether the wire is power supply, control, communication, alarm supervision, positioning signal, or multiple wire combinations combined in one jacket. - Determine if waterproof connectors, labels, junction boxes, access points, ground rods, terminals, heat shrink tubing or test tools are required. - Confirm that the listing terminology, jacket rating, shielding structure and installation environment are consistent, and do not mix wires with similar appearances across systems. - Save orders, equipment models, terminal photos and cable path records to facilitate future repurchases and support.
Installation Checklist

Start-up, termination, testing and delivery verification

Address type SLC Class B / Style 4 equipment circuit construction check with drawings
Take photos, mark, cut off power, and check terminals before starting work; keep test records and cable paths after completion.
Before and After Installation
Before and After Installation Take photos, mark, cut off power, and check terminals before starting work; keep test records and cable paths after completion.
Test Against the System Diagram
Test Against the System Diagram Continuity, short circuit, voltage, voltage drop, communication, function and recording are completed one by one according to the path.
Turnover and Long-Term Service
Turnover and Long-Term Service Save device models, cable numbers, connector locations, test results and repurchase specifications to reduce subsequent callbacks.
Confirm the cable specification, installation path, product documents, and local codes before ordering or installation.
Reference

References and professional information

Use these references to check code context, equipment requirements, cable selection, and installation decisions. For inspected commercial work, fire alarm, underground utility, public works, or line-voltage boundaries, follow local code, manufacturer documentation, AHJ direction, and licensed professionals.
