Project scenario

What does this solution solve?

Typical older homes have 18/4 conductor count or less, and Wi-Fi thermostats need to be stable 24VAC common. System goal is to re-verify R, C, W, Y, G and spare conductor from furnace/air handler control board to wall thermostat. Confirm the equipment and boundaries first, then determine the cable path, recommended wires, wiring key points, construction checks and reference materials to reduce wrong cable selection and callbacks.

Visual Plan Map the system first, then choose the cable

Start with the system layout, then confirm the cable specification. You can check equipment, paths, termination, testing and acceptance issues together before ordering or requesting a quote.

Code Reference UL 13 Power-Limited Circuit Cables Whenever the text discusses listings, cable ratings, or acceptance boundaries, refer to this authoritative source. Manufacturer / Industry Reference EC&M Article 725 Class 2 and 3 Circuits When talking about device terminals, system topology or debugging methods in the text, refer to the manufacturer/industry information. Product Page View VS-W05-WH-1000 product page After reviewing the system logic, open the matching SKU page to confirm wire gauge, color, length, and ordering details. Custom Solutions Submit Project Request When unsure of distance, environment, or listing level, submit device model, photo, length, and purpose.

System Layout

Relationship from device to cable path

This diagram shows equipment relationships, cable paths, test points, and maintenance boundaries; actual construction is subject to equipment manuals, local codes, project drawings, and licensed professional judgment.

Upgrade old thermostat to Nest/ecobee/Honeywell smart thermostat system wiring and construction logic diagram — This system diagram shows equipment relationships, cable paths, test points, residential/commercial selection logic, and service boundaries. Actual installation must follow equipment manuals, local code, project drawings, and AHJ requirements.

01 Confirm System Equipment

Smart thermostat, furnace or air handler control panel, 24VAC transformer, outdoor condenser control terminals, possible float switch or zone panel.

02 Plan the Cable Route

The main wire runs from the HVAC control board R/C/W/Y/G terminals to the wall thermostat base; if an outdoor condenser is involved, there is also a low-voltage control wire from the control panel to the condenser contactor.

03 Match the Recommended Cable

18/5 for common single stage heat/cool + C-Wire; 18/8 for future heat pumps, dehumidification/humidification or spare conductor; 18/2 available for short range doorbells.

04 Check Wiring Priorities

Do not use G wire to replace C wire for a long time as a general recommendation; the terminal color is only for auxiliary purposes, and the final wiring is according to the equipment terminal identification; it is recommended to keep spare conductors for new pull wires and label both ends of the wire.

How the System Works

The operating logic of upgrading old thermostats to Nest / ecobee / Honeywell smart thermostats is: the head-end device provides power, control, communication or supervision, the cable sends the signal to the field device, and finally the closed loop is completed through test points, labels and records. The main wire runs from the HVAC control board R/C/W/Y/G terminals to the wall thermostat base; if an outdoor condenser is involved, there is also a low-voltage control wire from the control panel to the condenser contactor.

End-User and Project Selection Logic

End users focus on confirming the number of old conductors, C-wire, heat pump upgrades and in-wall routing; the electrician team and project engineers also confirm the return air space, wire numbers, DDC/BAS drawings, CMR/CMP and subsequent maintenance records.

Installation and Commissioning Logic

The key points of construction are to cut off the power, take photos, confirm the existing terminals, pull new wires without damaging the jacket, keep the labels on both ends consistent, leave the spare conductor long, test 24VAC before powering on, configure the thermostat system type, and record the final wiring. When debugging, conduct continuity/short circuit check first, then conduct voltage, voltage drop, communication or functional tests, and record the results.

Troubleshooting and Compliance Boundaries

Users can check thermostat model number, old wire count, terminal photo and power outage; refer to HVAC/electrician when it comes to 120V, control board replacement, heat pump configuration or commercial systems.

System Equipment

Smart thermostat, furnace or air handler control panel, 24VAC transformer, outdoor condenser control terminals, possible float switch or zone panel.

Cable Route

Recommended Cable

18/5 for common single stage heat/cool + C-Wire; 18/8 for future heat pumps, dehumidification/humidification or spare conductor; 18/2 available for short range doorbells.

Wiring Notes

Project Note

This guide supports product selection and project communication. It does not replace NEC/NFPA requirements, manufacturer manuals, project drawings, AHJ direction, or licensed electrician/contractor judgment. Always verify jacket markings, listing documents, equipment terminals, and local requirements before installation.

Related Applications

What other similar scenarios is this solution suitable for?

Smart thermostat upgrade, heat pump system, multi-stage HVAC, doorbell low-voltage power, light commercial DDC control, HVAC repair rewiring and new home rough-in.

Solution Details

Full Project Context and System Boundaries

**Jobjobsite and Cable Route** Typical older homes have 18/4 conductor count or less, and Wi-Fi thermostats need to be stable 24VAC common. The system goal is to reconfirm from the furnace/air handler control panel to the wall thermostat.

**System Relationship Diagram** Put field devices, cable paths, recommended wires, and maintenance points into the same visual to understand the system before proceeding to selection.

**Define the System Boundary** Put the smart thermostat, furnace or air handler control board, 24VAC transformer, outdoor condenser control terminal, possible. into the same relationship diagram, first confirm the equipment, and then confirm the wires.

Confirm the cable specification, installation path, product documents, and local codes before ordering or installation.

System Diagram

Visual Guide from Equipment to Cable Route

**System Connection Diagram** Use diagrams to first identify head-end devices, field devices, cable paths, test points, and maintenance boundaries.

**Field Devices and Cable Path** The main wire runs from the HVAC control board R/C/W/Y/G terminals to the wall thermostat base; if an outdoor condenser is involved, there is also a low-voltage control wire from the control panel to the condenser contactor.

**Field Route Mapped to Diagram Nodes** The main wire runs from the HVAC control board R/C/W/Y/G terminals to the wall thermostat base; if an outdoor condenser is involved, there is also a low-voltage control wire from the control panel to the condenser contactor.

Confirm the cable specification, installation path, product documents, and local codes before ordering or installation.

Cable Selection

Select cable by specification, environment and risk

Cable and Product Entry Check before selecting 18/5 for common single stage heat/cool + C-Wire; 18/8 for future heat pumps, dehumidification/humidification or spare conductor; 18/2 available for short range doorbells.

**Route Drives the Spec** Wire gauge, conductor count, jacket rating, shielding structure and color must be determined along with the system path.

**Verify the Install Environment** In-wall, ceiling, outdoor, underground, and wet-location, equipment boxes and commercial spaces have different wire requirements.

1. Overview of recommended wires
Recommended for this case: 18/5 for common single stage heat/cool + C-Wire; 18/8 for future heat pumps, dehumidification/humidification or spare conductors; 18/2 available for short range doorbells. Selection should also consider the number of devices, path distance, voltage/signal, installation environment, future expansion and compliance boundaries. 18/5 is suitable for common C-wire upgrades, 18/8 is suitable for smart thermostats, heat pumps, multi-stage and future-ready, 18/10 is suitable for complex systems or professional projects; 18/2 can be used for low-voltage doorbells and simple control points. Commercial ceilings, return air spaces or shafts must be individually identified CMP/CL2P or CMR/CL2R. 2. Specification selection table
- 18/2: Doorbell, simple low-voltage control, outdoor unit short control wire or maintenance package. - 18/5: The entry-level option for traditional heat/cool + C-wire. - 18/8: Smart thermostat, heat pump, multi-stage, humidification/dehumidification and future-proof featured. - 18/10: Complex HVAC, light commercial, or projects that require more spare conductors. - CL2/CMR and CL2P/CMP should not be mixed, and the commercial return air space needs to be confirmed separately. 3. Conductor and conductor count logic
The brand advantage of VOLTIC STONE is that it uses pure copper conductors and does not reduce specifications. The value of true-gauge copper is not a marketing slogan, but more stable termination, more controllable voltage drop, more consistent wire drawing and stripping experience, and easier jacket markings and specifications easier to verify by project personnel. More conductors are not necessarily more professional, but insufficient conductors will definitely lead to callbacks. When selecting, you should first list all the terminals required by the current equipment, plus at least one or two for future spares. Professional projects should also be reserved according to the drawings. 4. Jacket rating and installation space
The same wire gauge may require different jackets and listing levels in different spaces. The requirements are different for ordinary wall, riser, plenum, outdoor, wet area, direct burial, underground pipes, mechanical space, and ceiling return air space. Don't just look at the AWG and conductor count, but also check whether the cable jacket identification, packaging label, datasheet, listing document and installation environment are consistent. 5. Colors and labels
Color is an aid, not the specification itself. Red, white, green, yellow, blue, brown, black, orange, purple and other colors are commonly used for low-voltage cables to help terminal identification; tracer wire colors are often used according to APWA habits to assist in identifying underground facilities; lighting dimming lines are often purple/gray or purple/pink for identification; red sheaths are common for fire alarm cables. However, wiring cannot be based solely on color during construction, but must be based on terminal markings, drawings and equipment manuals. 6. Length and packaging recommendations
End users often focus on lengths such as 50ft, 100ft, 250ft that are easy to purchase and handle; electricians, contractors and distributors, supply partners are more concerned about 500ft, 1000ft, reel packaging, sequential length markings, jacket marking, batch numbers and outer box labels. When purchasing, a reasonable margin should be added based on the actual path, and the color, length, and use should be recorded on the project label. 7. It is not recommended to choose this way
- Do not substitute regular indoor wire for wire requiring direct burial, wet location, UV or plenum/riser. - Do not use low-voltage control wires for 120V or other line voltage supplies. - Do not write security cable as fire alarm cable unless the actual cable jacket marking and certificate clearly support it. - Do not promote ordinary multi-conductor cable as OSDP/RS-485 dedicated cable unless there are truly shielded twisted pairs and appropriate construction. - Do not mistake Sprinkler Wire for Tracer Wire, and do not mistake Tracer Wire for valve control wire. - Do not write strong promises such as UL Listed, FPLP, CMP, HDD rated, OSDP certified, etc. without a certificate. 8. Product verification before placing an order
After entering the corresponding Product Line, first check the wire gauge / conductor count, color, length, jacket rating, shielding structure, cable jacket identification and packaging information. Understand the system first, then choose wire gauge, color, length and quantity; if the project conditions are uncertain, you can submit photos of the equipment, distance, environment and usage for confirmation. 9. Turn selection into purchasing decision
Product collections, single products, specification sheets, FAQs, contact us and solution customization forms need to be connected to each other. After understanding the system logic, you can enter the product page to select the color and length; if you are not sure, enter the solution customization form to submit the device photo, distance and usage. This can reduce the cost of mispurchases, returns, callbacks and later inspections. 10. Order review list
- Verify that the AWG, conductor count, color, and jacket rating in the product title match the actual item. - Confirm that there is enough margin in length. Do not buy based on straight-line distance only for long distances or multi-turn paths. - Confirm whether the wire is power supply, control, communication, alarm supervision, positioning signal, or multiple wire combinations combined in one jacket. - Determine if waterproof connectors, labels, junction boxes, access points, ground rods, terminals, heat shrink tubing or test tools are required. - Confirm that the listing terminology, jacket rating, shielding structure and installation environment are consistent, and do not mix wires with similar appearances across systems. - Save orders, equipment models, terminal photos and cable path records to facilitate future repurchases and support.

Installation Checklist

Start-up, termination, testing and delivery verification

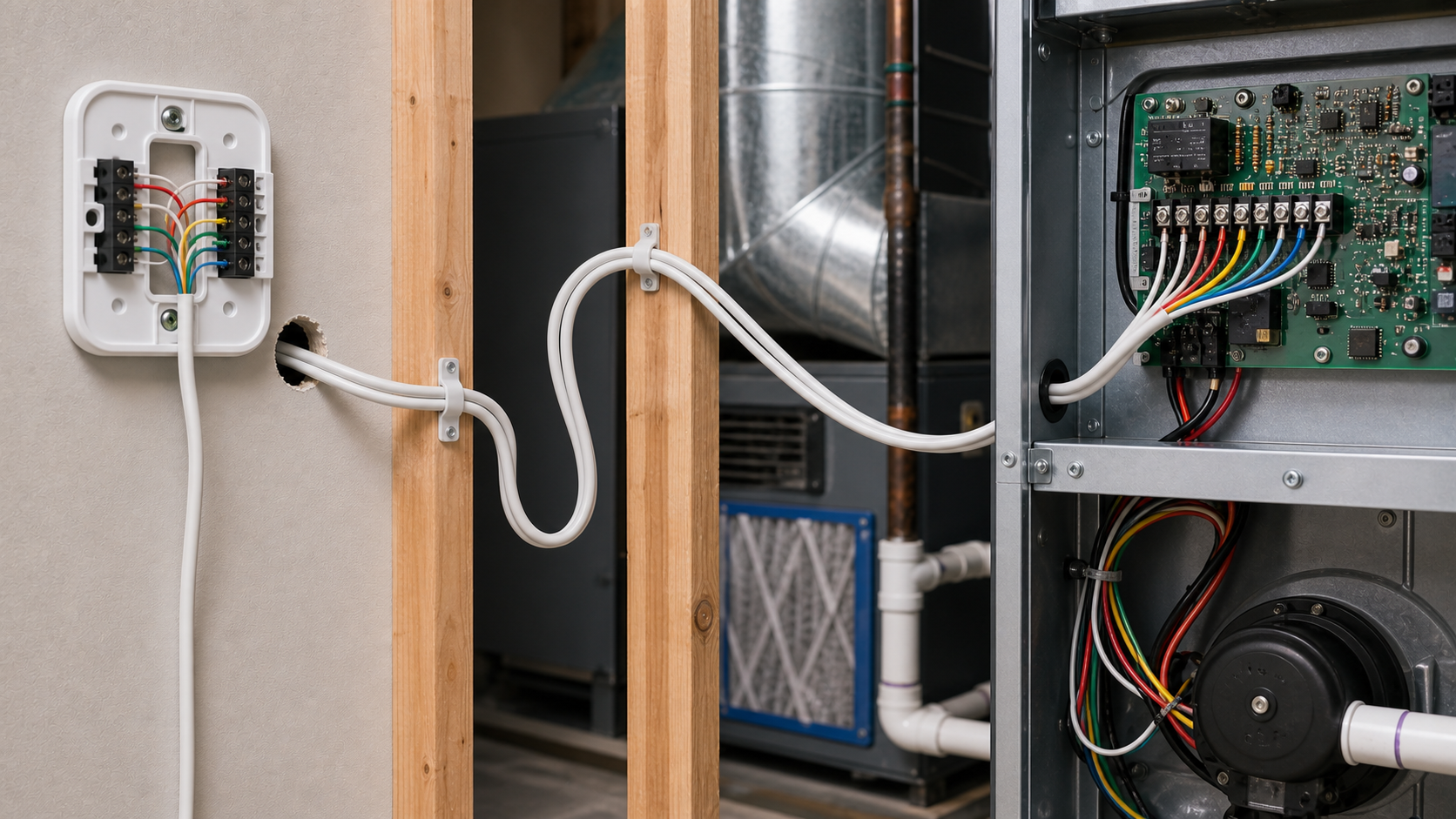

Upgrade old thermostat to Nest/ecobee/Honeywell smart thermostat construction verification visual — Take photos, mark, cut off power, and check terminals before starting work; keep test records and cable paths after completion.

**Before and After Installation** Take photos, mark, cut off power, and check terminals before starting work; keep test records and cable paths after completion.

**Test Point by Point** Continuity, short circuit, voltage, voltage drop, communication, function and recording are completed one by one according to the path.

**Turnover and Long-Term Service** Save device models, cable numbers, connector locations, test results and repurchase specifications to reduce subsequent callbacks.
