Heat pumps and multi-stage systems require more control points than a traditional single stage furnace + air conditioner, including O/B reversing valve, AUX/E, W2, Y2, L, dehumidification or humidification terminals. The system goal is to pull out enough conductors at one time to reduce wall opening and callbacks in the future. Confirm the equipment and boundaries first, then determine the cable path, recommended wires, wiring key points, construction checks and reference materials to reduce wrong cable selection and callbacks.
Visual PlanMap the system first, then choose the cable
Start with the system layout, then confirm the cable specification. You can check equipment, paths, termination, testing and acceptance issues together before ordering or requesting a quote.
This diagram shows equipment relationships, cable paths, test points, and maintenance boundaries; actual construction is subject to equipment manuals, local codes, project drawings, and licensed professional judgment.
This system diagram shows equipment relationships, cable paths, test points, residential/commercial selection logic, and service boundaries. Actual installation must follow equipment manuals, local code, project drawings, and AHJ requirements.
01Confirm System Equipment
Smart thermostat, heat pump outdoor unit, air handler, aux heat, dual fuel control, humidifier/dehumidifier, zone control panel.
02Plan the Cable Route
A multi-conductor thermostat wire is used from the wall thermostat to the indoor control panel; there is usually an independent low-voltage control line from the indoor control panel to the outdoor unit; additional equipment is connected to the control panel or special controller according to the manufacturer's terminals.
03Match the Recommended Cable
18/8 as heat pump and multi-stage main; 18/10 for high-end systems, BAS edge scenarios or future expansion; 18/2/18/4 as outdoor unit or additional equipment control line.
04Check Wiring Priorities
The definitions of O/B, AUX/E, W2, and Y2 may be different for different brands; the system type and thermostat configuration must be checked before powering on to avoid malfunction of the compressor, auxiliary heat or fan.
1
How the System Works
Heat Pump / Dual Fuel / Two-stage HVAC The operating logic of reserved wiring is: the head-end device provides power supply, control, communication or supervision, the cable sends the signal to the field device, and finally completes the closed loop through test points, labels and records. A multi-conductor thermostat wire is used from the wall thermostat to the indoor control panel; there is usually an independent low-voltage control line from the indoor control panel to the outdoor unit; additional equipment is connected to the control panel or special controller according to the manufacturer's terminals.
2
End-User and Project Selection Logic
End users focus on confirming the number of old conductors, C-wire, heat pump upgrades and in-wall routing; the electrician team and project engineers also confirm the return air space, wire numbers, DDC/BAS drawings, CMR/CMP and subsequent maintenance records.
3
Installation and Commissioning Logic
The key points of construction are to cut off the power, take photos, confirm the existing terminals, pull new wires without damaging the jacket, keep the labels on both ends consistent, leave the spare conductor long, test 24VAC before powering on, configure the thermostat system type, and record the final wiring. When debugging, conduct continuity/short circuit check first, then conduct voltage, voltage drop, communication or functional tests, and record the results.
4
Troubleshooting and Compliance Boundaries
Users can check thermostat model number, old wire count, terminal photo and power outage; refer to HVAC/electrician when it comes to 120V, control board replacement, heat pump configuration or commercial systems.
System Equipment
Smart thermostat, heat pump outdoor unit, air handler, aux heat, dual fuel control, humidifier/dehumidifier, zone control panel.

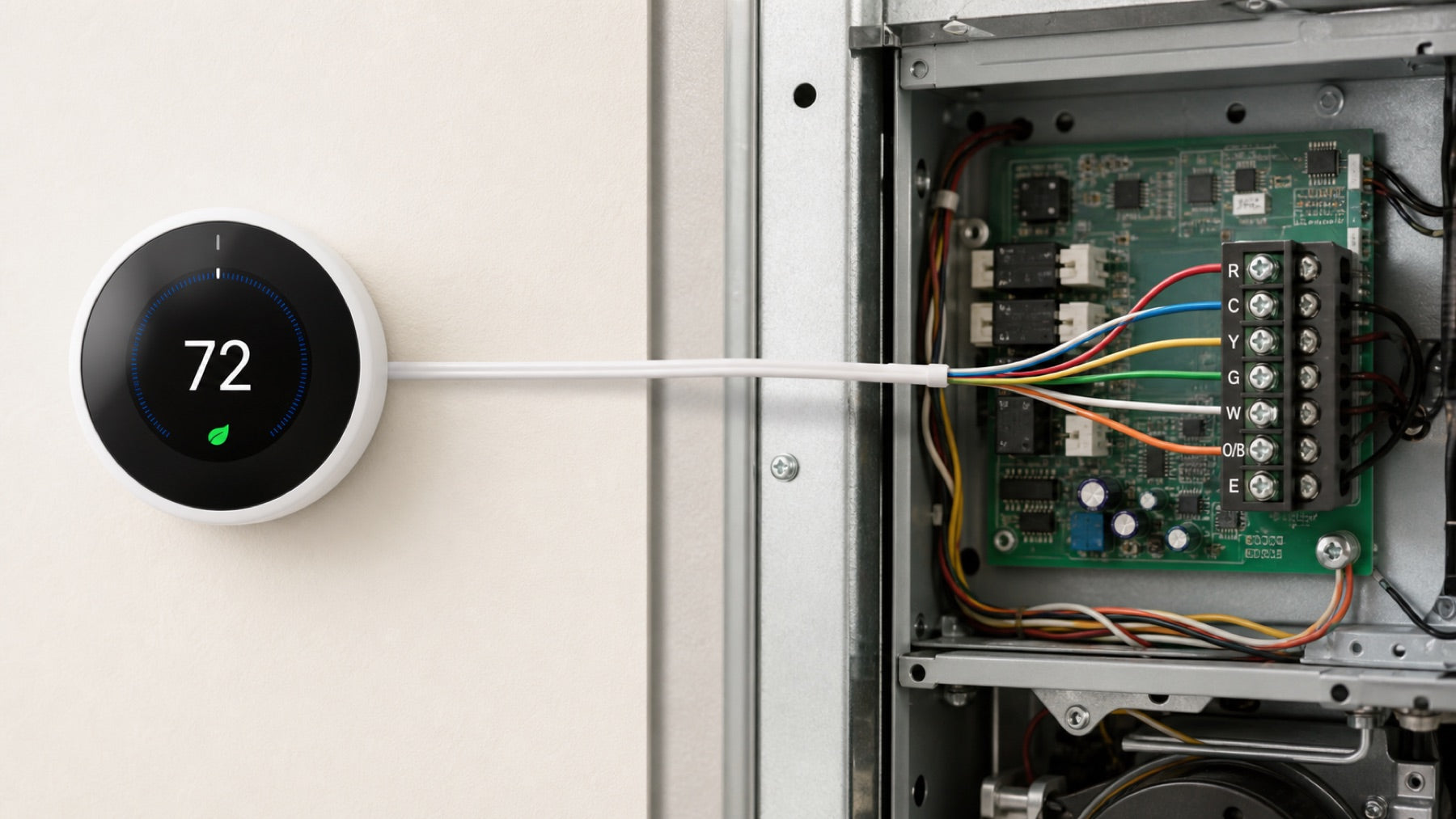

Cable Route
A multi-conductor thermostat wire is used from the wall thermostat to the indoor control panel; there is usually an independent low-voltage control line from the indoor control panel to the outdoor unit; additional equipment is connected to the control panel or special controller according to the manufacturer's terminals.
The definitions of O/B, AUX/E, W2, and Y2 may be different for different brands; the system type and thermostat configuration must be checked before powering on to avoid malfunction of the compressor, auxiliary heat or fan.
Project Note
This guide supports product selection and project communication. It does not replace NEC/NFPA requirements, manufacturer manuals, project drawings, AHJ direction, or licensed electrician/contractor judgment. Always verify jacket markings, listing documents, equipment terminals, and local requirements before installation.
Related Applications
What other similar scenarios is this solution suitable for?
Smart thermostat upgrade, heat pump system, multi-stage HVAC, doorbell low-voltage power, light commercial DDC control, HVAC repair rewiring and new home rough-in.
Solution Details
Full Project Context and System Boundaries
Heat pumps and multi-stage systems require more control points than a traditional single stage furnace + air conditioner, including O/B reversing valve, AUX/E, W2, Y2, L, dehumidification or humidification terminals. The system goal is to pull out enough conductors at one time to reduce wall opening and callbacks in the future.
Jobjobsite and Cable RouteHeat pumps and multi-stage systems require more control points than a traditional single stage furnace + air conditioner, including O/B reversing valve, AUX/E, W2, Y2, L, dehumidification or humidification terminals. The system goal is to pull out enough conductors at one time to reduce wall opening and callbacks in the future.System Relationship DiagramPut field devices, cable paths, recommended wires, and maintenance points into the same visual to understand the system before proceeding to selection.Define the System BoundaryPut the smart thermostat, heat pump outdoor unit, air handler, aux heat, dual fuel. into the same relationship diagram, confirm the equipment first, and then confirm the wires.
Confirm the cable specification, installation path, product documents, and local codes before ordering or installation.
System Diagram
Visual Guide from Equipment to Cable Route
Use diagrams to first identify head-end devices, field devices, cable paths, test points, and maintenance boundaries.

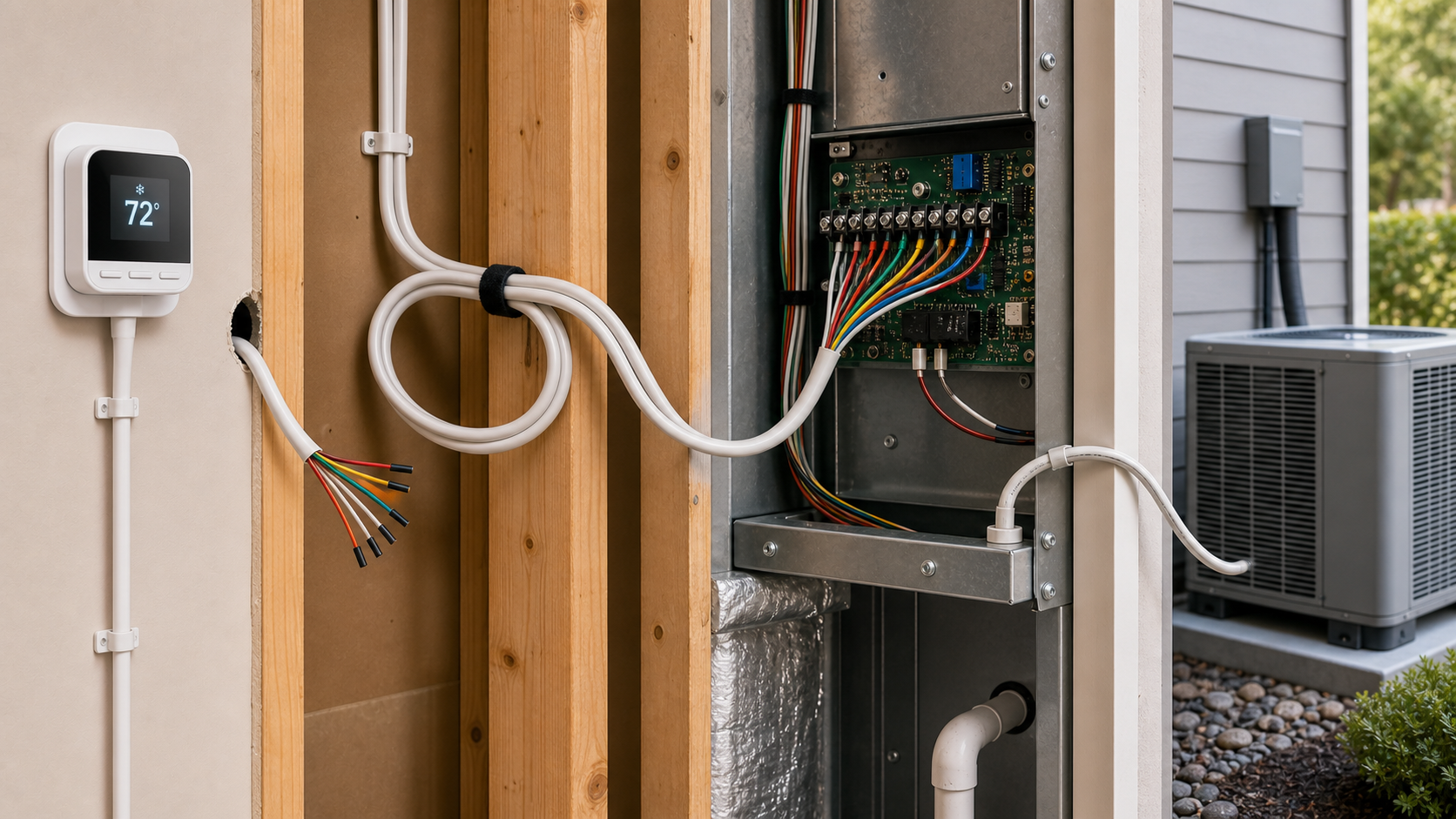

System Connection DiagramUse diagrams to first identify head-end devices, field devices, cable paths, test points, and maintenance boundaries.Field Devices and Cable PathA multi-conductor thermostat wire is used from the wall thermostat to the indoor control panel; there is usually an independent low-voltage control line from the indoor control panel to the outdoor unit; additional equipment is connected to the control panel or special controller according to the manufacturer's terminals.Field Route Mapped to Diagram NodesA multi-conductor thermostat wire is used from the wall thermostat to the indoor control panel; there is usually an independent low-voltage control line from the indoor control panel to the outdoor unit; additional equipment is connected to the control panel or special controller according to the manufacturer's terminals.
Confirm the cable specification, installation path, product documents, and local codes before ordering or installation.

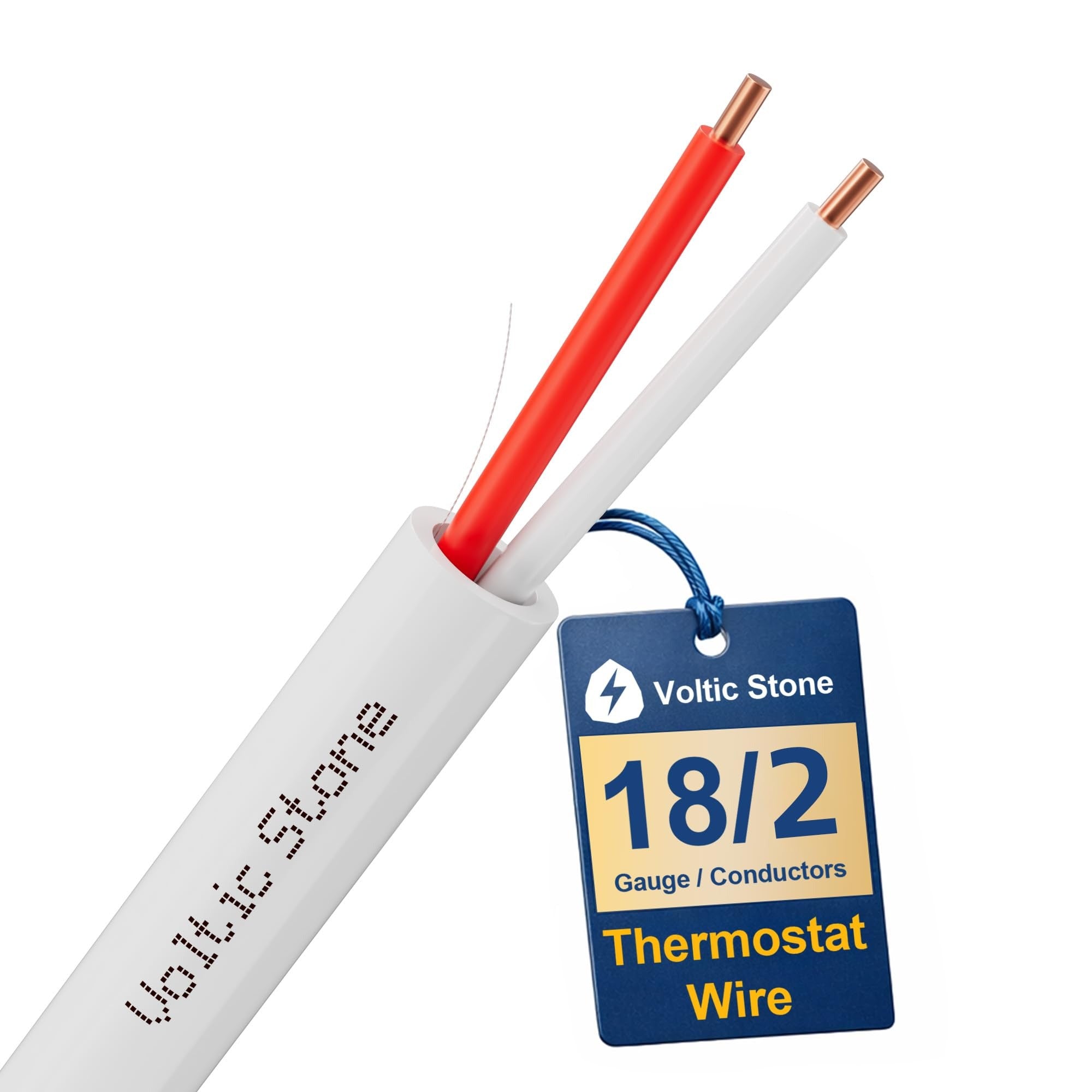

Cable Selection
Select cable by specification, environment and risk
Before selecting a cable, confirm the system requirement. 18/8 is used as the main recommendation for heat pumps and multi-stages; 18/10 is used for high-end systems, BAS edge scenarios or future expansion; 18/2/18/4 can be used as outdoor units or additional equipment control lines.
1. Overview of recommended wires
Recommended in this case: 18/8 as heat pump and multi-stage main push; 18/10 for high-end systems, BAS edge scenarios or future expansion; 18/2/18/4 can be used as outdoor units or additional equipment control lines. Selection should also consider the number of devices, path distance, voltage/signal, installation environment, future expansion and compliance boundaries. 18/5 is suitable for common C-wire upgrades, 18/8 is suitable for smart thermostats, heat pumps, multi-stage and future-ready, 18/10 is suitable for complex systems or professional projects; 18/2 can be used for low-voltage doorbells and simple control points. Commercial ceilings, return air spaces or shafts must be individually identified CMP/CL2P or CMR/CL2R. 2. Specification selection table
- 18/2: Doorbell, simple low-voltage control, outdoor unit short control wire or maintenance package. - 18/5: The entry-level option for traditional heat/cool + C-wire. - 18/8: Smart thermostat, heat pump, multi-stage, humidification/dehumidification and future-proof featured. - 18/10: Complex HVAC, light commercial, or projects that require more spare conductors. - CL2/CMR and CL2P/CMP should not be mixed, and the commercial return air space needs to be confirmed separately. 3. Conductor and conductor count logic
The brand advantage of VOLTIC STONE is that it uses pure copper conductors and does not reduce specifications. The value of true-gauge copper is not a marketing slogan, but more stable termination, more controllable voltage drop, more consistent wire drawing and stripping experience, and easier jacket markings and specifications easier to verify by project personnel. More conductors are not necessarily more professional, but insufficient conductors will definitely lead to callbacks. When selecting, you should first list all the terminals required by the current equipment, plus at least one or two for future spares. Professional projects should also be reserved according to the drawings. 4. Jacket rating and installation space
The same wire gauge may require different jackets and listing levels in different spaces. The requirements are different for ordinary wall, riser, plenum, outdoor, wet area, direct burial, underground pipes, mechanical space, and ceiling return air space. Don't just look at the AWG and conductor count, but also check whether the cable jacket identification, packaging label, datasheet, listing document and installation environment are consistent. 5. Colors and labels
Color is an aid, not the specification itself. Red, white, green, yellow, blue, brown, black, orange, purple and other colors are commonly used for low-voltage cables to help terminal identification; tracer wire colors are often used according to APWA habits to assist in identifying underground facilities; lighting dimming lines are often purple/gray or purple/pink for identification; red sheaths are common for fire alarm cables. However, wiring cannot be based solely on color during construction, but must be based on terminal markings, drawings and equipment manuals. 6. Length and packaging recommendations
End users often focus on lengths such as 50ft, 100ft, 250ft that are easy to purchase and handle; electricians, contractors and distributors, supply partners are more concerned about 500ft, 1000ft, reel packaging, sequential length markings, jacket marking, batch numbers and outer box labels. When purchasing, a reasonable margin should be added based on the actual path, and the color, length, and use should be recorded on the project label. 7. It is not recommended to choose this way
- Do not substitute regular indoor wire for wire requiring direct burial, wet location, UV or plenum/riser. - Do not use low-voltage control wires for 120V or other line voltage supplies. - Do not write security cable as fire alarm cable unless the actual cable jacket marking and certificate clearly support it. - Do not promote ordinary multi-conductor cable as OSDP/RS-485 dedicated cable unless there are truly shielded twisted pairs and appropriate construction. - Do not mistake Sprinkler Wire for Tracer Wire, and do not mistake Tracer Wire for valve control wire. - Do not write strong promises such as UL Listed, FPLP, CMP, HDD rated, OSDP certified, etc. without a certificate. 8. Product verification before placing an order
After entering the corresponding Product Line, first check the wire gauge / conductor count, color, length, jacket rating, shielding structure, cable jacket identification and packaging information. Understand the system first, then choose wire gauge, color, length and quantity; if the project conditions are uncertain, you can submit photos of the equipment, distance, environment and usage for confirmation. 9. Turn selection into purchasing decision
Product collections, single products, specification sheets, FAQs, contact us and solution customization forms need to be connected to each other. After understanding the system logic, you can enter the product page to select the color and length; if you are not sure, enter the solution customization form to submit the device photo, distance and usage. This can reduce the cost of mispurchases, returns, callbacks and later inspections. 10. Order review list
- Verify that the AWG, conductor count, color, and jacket rating in the product title match the actual item. - Confirm that there is enough margin in length. Do not buy based on straight-line distance only for long distances or multi-turn paths. - Confirm whether the wire is power supply, control, communication, alarm supervision, positioning signal, or multiple wire combinations combined in one jacket. - Determine if waterproof connectors, labels, junction boxes, access points, ground rods, terminals, heat shrink tubing or test tools are required. - Confirm that the listing terminology, jacket rating, shielding structure and installation environment are consistent, and do not mix wires with similar appearances across systems. - Save orders, equipment models, terminal photos and cable path records to facilitate future repurchases and support.
Installation Checklist
Start-up, termination, testing and delivery verification
Take photos, mark, cut off power, and check terminals before starting work; keep test records and cable paths after completion.
Before and After InstallationTake photos, mark, cut off power, and check terminals before starting work; keep test records and cable paths after completion.Test Point by PointContinuity, short circuit, voltage, voltage drop, communication, function and recording are completed one by one according to the path.Turnover and Long-Term ServiceSave device models, cable numbers, connector locations, test results and repurchase specifications to reduce subsequent callbacks.
Confirm the cable specification, installation path, product documents, and local codes before ordering or installation.
