Yard irrigation projects often have control lines, underground mains and positioning requirements at the same time. The goal of the system is to let the sprinkler control line be responsible for valve action, and the Tracer Wire be responsible for locating non-metallic pipelines in the future. The uses of the two types of lines are clear and the paths are clearly recorded. Confirm the equipment and boundaries first, then determine the cable path, recommended wires, wiring key points, construction checks and reference materials to reduce wrong cable selection and callbacks.
Visual PlanMap the system first, then choose the cable
Start with the system layout, then confirm the cable specification. You can check equipment, paths, termination, testing and acceptance issues together before ordering or requesting a quote.
This diagram shows equipment relationships, cable paths, test points, and maintenance boundaries; actual construction is subject to equipment manuals, local codes, project drawings, and licensed professional judgment.
This system diagram shows equipment relationships, cable paths, test points, residential/commercial selection logic, and service boundaries. Actual installation must follow equipment manuals, local code, project drawings, and AHJ requirements.
The sprinkler wire controls the solenoid from the controller to the valve box; the tracer wire is laid continuously along the non-metallic irrigation main pipe, and a location where the positioner can be accessed is reserved at the valve box or test point. The two lines can be planned in the same channel, but with separate uses, connectors, and labels.
03Match the Recommended Cable
18 AWG multi-conductor Sprinkler Wire for valve control; 14 AWG solid copper direct burial Tracer Wire for irrigation main or water pipe location.
04Check Wiring Priorities
Control lines need to be wired according to zone/common and tested zone by zone; trace lines need continuity, waterproof connectors, access points and continuity tests. Both should be documented in the as-built sketch.
1
How the System Works
The operation logic of Sprinkler Wire and Tracer Wire's irrigation supervisor coordination solution is: the head-end device provides power, control, communication or supervision, the cable sends the signal to the field device, and finally the closed loop is completed through test points, tags and records. sprinkler wire controls solenoid from controller to valve box; tracer wire.
2
End-User and Project Selection Logic
The end user focuses on confirming the controller terminal, number of valves, common wire, valve box waterproof connector and partition label; the project engineer also confirms the wire gauge distance, master valve, pump relay, two-wire decoding system and maintenance drawings.
3
Installation and Commissioning Logic
The key points of construction are 811, controller terminal number, common wire continuity, corresponding valves for each zone wire, valve box waterproof joints, spare conductor insulation, cable path records, continuity test before power-on, zone-by-zone start-up test and maintenance labels. When debugging, conduct continuity/short circuit check first, then conduct voltage, voltage drop, communication or functional tests, and record the results.
4
Troubleshooting and Compliance Boundaries
Users can check the controller label, visible connectors on the valve box, loose common wire and contact 811; refer to an irrigation/electrical professional when it comes to 120V power, pump control, deep dig, two-wire decoding, or extensive faults.
The sprinkler wire controls the solenoid from the controller to the valve box; the tracer wire is laid continuously along the non-metallic irrigation main pipe, and a location where the positioner can be accessed is reserved at the valve box or test point. The two lines can be planned in the same channel, but with separate uses, connectors, and labels.
Control lines need to be wired according to zone/common and tested zone by zone; trace lines need continuity, waterproof connectors, access points and continuity tests. Both should be documented in the as-built sketch.
Project Note
Sprinkler Wire is not a Tracer Wire; nor is a Tracer Wire a replacement for valve control wires. Contact 811 before excavation and underground paths, colors and access points should be confirmed based on local requirements and project needs.
Related Applications
What other similar scenarios is this solution suitable for?
Put field devices, cable paths, recommended wires, and maintenance points into the same visual to understand the system before proceeding to selection.

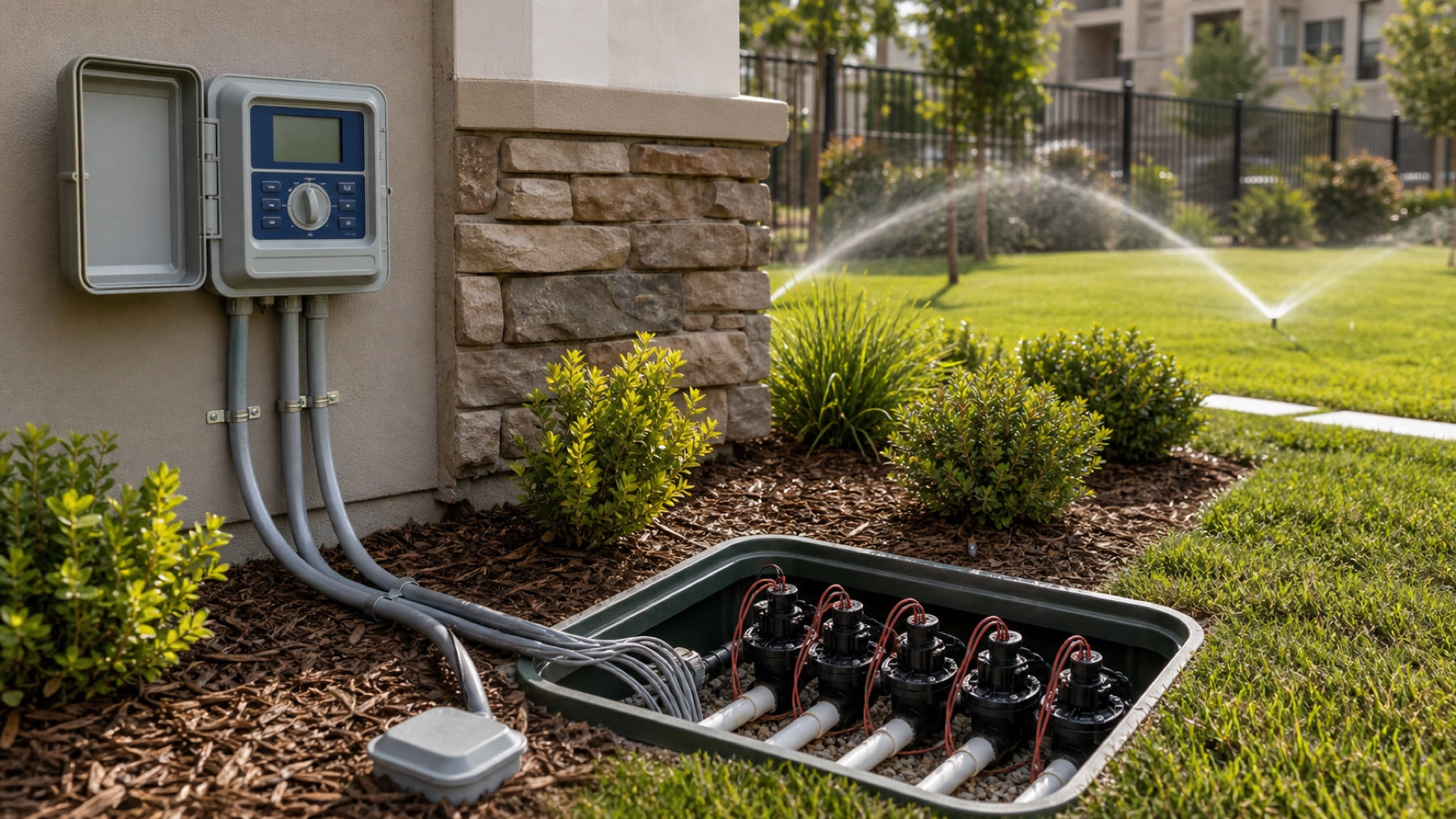

System Relationship DiagramPut field devices, cable paths, recommended wires, and maintenance points into the same visual to understand the system before proceeding to selection.Jobjobsite and Cable RouteYard irrigation projects often have control lines, underground mains and positioning requirements at the same time. The goal of the system is to let the sprinkler control line be responsible for valve action, and the Tracer Wire be responsible for locating non-metallic pipelines in the future. The uses of the two types of lines are clear and the paths are clearly recorded.Define the System BoundaryPut the Sprinkler controller, valve box, irrigation main, 18 AWG sprinkler wire, 14 AWG. into the same relationship diagram, first confirm the equipment, and then confirm the wire.
